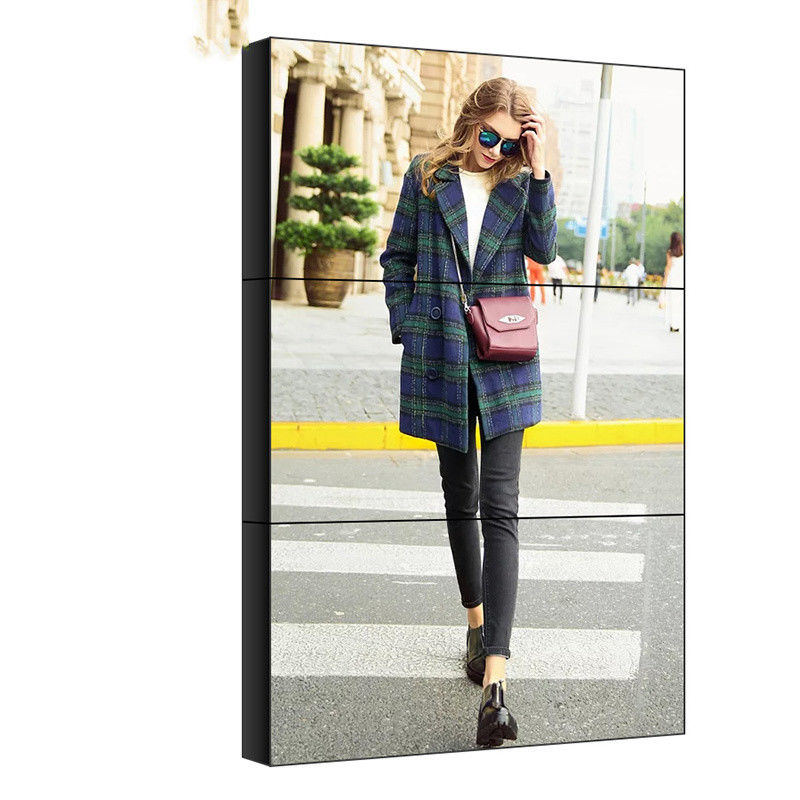

ROHS LCD Video Wall Display 1920x1080/4k 3x3 LCD Splicing Screen

Product Details

Place of Origin: China

Brand Name: Smart Display

Certification: CE,FCC, Rohs. CB

Model Number: SW-01

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Outer wooden box, middle carton, inner PE cotton

Delivery Time: 7-25

Payment Terms: TT

Supply Ability: 5000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

ROHS LCD Video Wall Display

,

lcd video wall 1920x1080/4k

,

3x3 LCD splicing screen

Application:
Indoor
View Angle:
178°/178°(H/V)
Panel Parameter:
RGB Vertical Stripe
Bezel:
3.5mm
Size:
55inch
Display Colors:
8bit-16.7m
Type:
Wall Mounted
Resolution:
1920*1080 /4k
Customized Service:
Yes
Brand:
Smart Display
Application:
Indoor
View Angle:
178°/178°(H/V)
Panel Parameter:
RGB Vertical Stripe
Bezel:
3.5mm
Size:
55inch
Display Colors:
8bit-16.7m
Type:
Wall Mounted
Resolution:
1920*1080 /4k
Customized Service:
Yes
Brand:
Smart Display
Description
ROHS LCD Video Wall Display 1920x1080/4k 3x3 LCD Splicing Screen

ROHS LCD Video Wall Display 1920x1080/4k 3x3 LCD Video Wall Display



Product size table
Panel size Bilateral seam Panel Length Panel Width Panel Thickness Panel Brand Model No.
46inch 1.7mm 1020.02mm 574.61mm 120.54mm Samsung LTI460HN15
46inch 3.5mm 1021.98mm 576.57mm 121.7mm Samsung LTI460HN11
46inch 5.5mm 1023.98mm 578.57mm 133mm Samsung LTI460HN09
49inch 1.8mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-TJB2
49inch 3.5mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-THC4
55inch 1.8mm 1213.5mm 684.3mm 110mm LG LD550DUN-THB8
55inch 3.5mm 1213.5mm 684.30mm 110mm Samsung LTI550HN11






nel
ITEM NO.
LD490DUN-THC1
LCD SIZE
49"
LCD
LCD screen
Backlight
LED
Resolution
1920 x 1080 (pixels)
Brightness (typ)/(min)
500cd/m² nits (typ.)
Contrast Ratio (typ)
3500:1 (typ.)
Response time (ms)
8ms (typ.)
Pixel Pitch
0.63(H)mm x 0.63(V)mm
Frame frequency
60 Hz
Viewing Angle
178°(H) / 178°(V)
Lifetime(typ)/(min)
60,000 hrs (min.)
Display area
1074.1(H)mm x 604.3(V)mm
Color
1.67M
Power
Voltage
100 V ~ 240 V, 50-60 Hz
Power consumption
≤180W
Standby (Watt)
≤0.5W
T / H
Operating Temperature(℃)
0℃~60℃
Storage Temperature(℃)
-10℃~70℃
Storage Humidity
10%~90% RH Non-Condensing
Operating Humidity
5~95% RH Non-Condensing
Display Mode
Standard,Soft,User,Bright
Using time(Hours/days)
24hours*7days
IN/OUT SINGNAL
CVBS input
*1
HDMI input
*1
DVI input
*1
VGA input
*1
RS232
Input: RS232 x1; Output: RS232 x2
Language
Outline size(WxHxD)
1077.58 * 607.8* 62.7 mm
Appearance color
Black
Casing material
Metal
Bezel
3.5mm
Attachment
OSD
English / Chinese / Others
IN/OUT SINGNAL
Remote Controller
*1
Cable
*1
Certificate of quality
*1
Instruction book
*1
Warranty card
*1

ROHS LCD Video Wall Display 1920x1080/4k 3x3 LCD Splicing Screen 0


ROHS LCD Video Wall Display 1920x1080/4k 3x3 LCD Splicing Screen 1

ROHS LCD Video Wall Display 1920x1080/4k 3x3 LCD Splicing Screen 2



ROHS LCD Video Wall Display 1920x1080/4k 3x3 LCD Splicing Screen 3


Hot Sales (3 models)

Model
46 inch 3.5mm Video wall screen specification
Contrast
3000:01:00
Display color
16.7M
Response time
8ms
Viewing angle
89/89/89/89(Typ)
working frequency
60HZ
Stitching
3.5mm
USB input
(usb * 1) can be upgraded to support video picture media playback
HDTV input
(HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible

with 4k, customization required
VGA input
(vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
DVI input
(dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
4k needs customization
BNC input
(bnc * 1) Support ntsc pal and other formats
Remote Receive Input
(debug * 1) Remote control signal transmission
RJ45 input
(rj45 * 1) rs232 signal input
RJ45 output
(rj45 * 2) rs232 signal output
BNC output
(bnc * 1) Support ntsc pal and other formats
Show diagonal
AC220V 50/60Hz
Dimensions
<=240W
Display area
3W
Zoom
0~50℃
Panel type
-20~65℃
Resolution
Simplified Chinese, Traditional Chinese, English and other languages
Dot Pitch
18KG
brightness
Wall-mounted, embedded, floor-standing, front maintenance, cabinet
Model
55 inch 1.7mm Video Wall Screen Specification
Show diagonal
55 "
Outline size
1211.54(W)*682.34(H)*118.2(D)mm
Display area
1209.6(W)*680.4(H)mm
display scale
LED backlight
Resolving power
1920(RGB)X1080,FHD
Point spacing
0.210(H)*0.630(V)
brightness
500CD/M
contrast ratio
4000:01:00
Display color
16.7M
response time
8ms
viewing angle
89/89/89/89(Typ)
working frequency
60HZ
Splicing joint
1.7mm
USB input
(USB * 1) upgradeable video picture media playback
HDTV input
(HDTV * 1) support 1920 * 1080 @ 60Hz signal input, downward

compatible 4K, customized
VGA input
(VGA * 1) support 1920 * 1080 @ 60Hz signal input and downward

compatibility
DVI input
(DVI * 1) support 1920 * 1080 @ 60Hz signal input and downward

compatibility 4K needs customization
BNC input
(BNC * 1) support NTSC pal and other systems
Remote control

(debug * 1) remote control signal transmission
receiving input
RJ45 input
(RJ45 * 1) RS232 signal input
RJ45 output
(RJ45 * 2) RS232 signal output
BNC output
(BNC * 1) support NTSC pal and other systems
working voltage
AC220V 50/60Hz
Product power

Less than 240W
consumption
standby power
3W
working temperature
0~ 50 C
Storage temperature
-20~ 65 C
Menu language
Simplified Chinese, traditional Chinese, English and other multi-national

languages
Installation mode
Wall mounted, embedded, floor standing, front maintenance, cabinet
Model
49 inch 3.5MM splicing unit specifications
Diagonal display
49 "
Display area
1073.8 (W) *604.0(H)mm
Zoom
led Backlight
Panel Type
LED backlight
Resolution
1920(RGB)X1080, FHD
Spacing
0.1864 (H) * 0.5593 (V)
brightness
450CD / M²
Contrast
1300:01:00
Color display
16.7M
response time
8ms
Viewing angle
89/89/89/89(Typ)
working frequency
60HZ
Patchwork stitching
3.5mm
USB input
(USB * 1) can be upgraded media player supports video pictures
HDTV input
(HDTV * 1) * Support 1920 1080 @ 60HZ signal input is backward

compatible with 4K be customized
VGA Entry
(VGA * 1) * Support 1920 1080 @ 60HZ signal inputs can be

backward compatible
DVI Entry
(DVI * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward

compatible 4K be customized
BNC Entry
(BNC * 1)And other standard support NTSC PAL
Remote control receiver input
(DEBUG * 1) the remote control signal transmission
RJ45 input
(RJ45 * 1) RS232 input signal
RJ45 output
(RJ45 * 2) RS232 signal output
BNC output
(BNC * 1)And other standard support NTSC PAL
Operating Voltage
AC220V 50 / 60Hz
Power consumption
≤240W
Standby power consumption
3W
Operating temperature
0~ 50 C
storage temperature
-20~ 65 C
Menu language
Simplified Chinese, Traditional Chinese, English and other languages
Installation mode
Wall-mounted, embedded, floor, before the maintenance, cabinet








Advantages of LCD Video Wall
Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
Economical and practical: High performance and high quality make it cost less.
