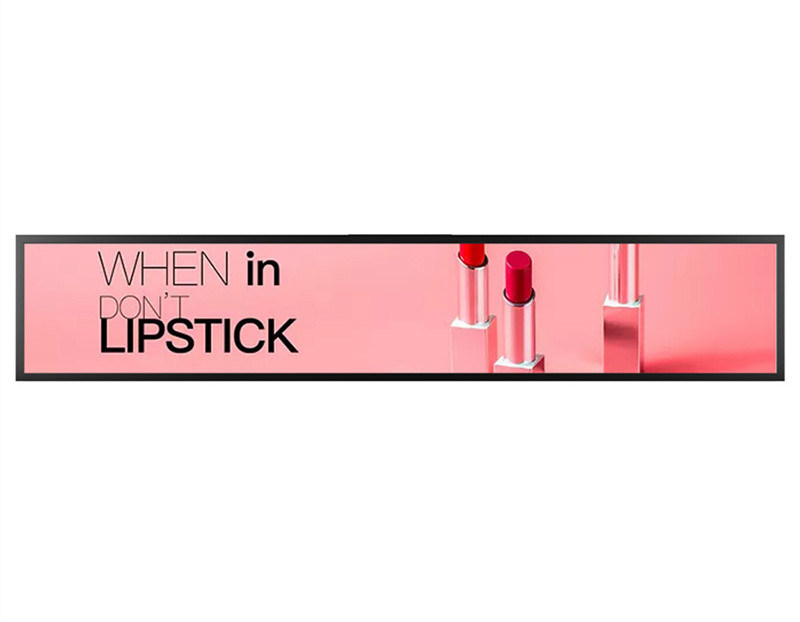

19.7 Inch Supermarket Shelf Edge Stretched LCD Display Ads Media Player
Specification
| Display Area(mm) | 479.6*159.5 |
| Outline Dimension(mm) | 495.5*180*10.6 |
| Video Format | MPGMPG-1MPG-2MPG-4AVIWMVRMRMVB |
| Image Format | JPG JPEG GIF PNG BMP |
| Audio | built-in HD audio 8(Realtek ALC888) audio system |
| Speaker | 2*5w |
Features:
1, High contrast, high brightness, greatly improving the layering of the picture, and better performance of details, wide color range.
2, Sync play or play as a video wall.
3, Shelf edge LCD display with narrow bezel, advertisements are displayed without blocking the sight of consumers.
4, Support WIFI/LAN,3G/4G(optional).
5, Optional CMS software for content remote management.
Product Usages:
Stretched bar LCD display design for bus, metro, airport and other transportation, shopping mall and retail shop, replacement of the traditional paper display.
| Type | size | Spec. |
| shelf streched display | 23.1inch | Display area: 597.89mmx66.6mm Dimensions: 621.99mm(H)x91.8mm (V) Resolution: 1920X213 Brightness: 350cd/㎡ Metal stamping integrated molding, 1G+8G |
| 35inch | Display area: 878.4mm(H)x48.19mm (V) Dimensions: 891.6mm(H)x60.4mm (V) Display ratio:>3:1 (H:V) Resolution: 2880X158 Brightness: 350cd/㎡ Hardware Stamping one-piece mould,1G+8G | |
| 37inch | Display area: 875.43mm(H)x43.99mm (V) Dimensions: 895.1mm(H)x52.6mm (V) x21mm Display ratio:>3:1 (H:V) Resolution: 3840X120 Brightness: 500cd/㎡ Metal stamping integrated molding die,1G+8G | |
| 46.6inch | Display area: 1183.7mm(H)x37mm (V) Dimensions: 1203.3mm(H)x52.6mm (V) x21mm Display ratio:>3:1 (H:V) Resolution: 3840(H) × 120(V) ) Brightness: 500cd/㎡ ,1G+8G | |
| bar screen | 15.1inch | Display area: 374.78mmx64.5mm Dimensions: 402.58mm(H)x91.8mm (V) Resolution: 1280X235 Brightness: 700cd/㎡ Aluminum alloy wire drawing External tempered explosion-proof glass,1G+8G |
| 21.2inch | Display area: 518mm(H)x148mm (V) Dimensions: 544×178×28mm Resolution: 1920X550 Brightness: 400cd/㎡ Hardware CNC integrated molding mold,1G+8G |
|
| 24inch | Display area: 597.888mm(H)x112.104mm (V) Dimensions: 629.1mm(H)x143.5mm (V) Display ratio: >3:1 (H:V) Resolution: 1920X360 Brightness: 350cd/㎡ Hardware CNC integrated mould,1G+8G | |
| 24.5inch | Display area: 597.6mm(H)x168.08mm (V) Dimensions: 622×192×41mm Display ratio:>3:1 (H:V) Resolution: 1920X540 Brightness: 400cd/㎡ Hardware CNC integrated molding mold,1G+8G | |
| 36.5inch | Display area: 878mm(H)x242.6mm Dimensions: 906mm(H)x271x42mm (V) Resolution: 1920X540 Brightness: 500cd/㎡ Hardware CNC integrated molding mold ,1G+8G | |
| 36.5inch | Display area: 878mm(H)x242.6mm Dimensions: 906.4×271×42mm Resolution: 1920X540 Brightness: 500cd/㎡ Hardware CNC integrated molding mold ,1G+8G | |
| 43.8inch | Display area: 1071.36mm(H)x301.32mm Dimensions: 1099.7mm(H)x329.7x44mm (V) Resolution: 3840X1080 Brightness: 500cd/㎡ Hardware CNC integrated molding mold,1G+8G | |
| 49.5inch | Display area: 1210(H) × 340(V)mm Dimensions: 1238×369×51mm Resolution: 1920X540 Brightness: 500cd/㎡ Aluminum alloy metal sandblasting frame ,1G+8G | |
| 60inch | Display area: 1428.5mm(H)x535.6mm (V) Dimensions: 1456.9mm(H)x564mm (V) x53mm Resolution: 3840X1440 Brightness: 500cd/㎡ Aluminum alloy metal sandblasting frame ,1G+8G | |
| 68inch | Display area: 463.7mm(H)x1649mm (V) Dimensions: 1649mm(H)x510mm (V) x24mm Resolution: 1080X3840 Brightness: 500cd/㎡ Aluminum alloy metal sandblasting frame,1G+8G | |
| 80inch | Display area: × 598.32 mm (H×V) Dimensions: ×611.3×84.2mm Resolution: 3840 ×1080 Brightness: 400cd/㎡ ,1G+8G | |
| 88inch | Display area: 2148.48 × 598.32 mm (H×V) Dimensions: 2158.4×611.3×84.2mm Resolution: 3840 ×1080 Brightness: 700cd/㎡ ,1G+8G |
