Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: SW-01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Application: |
Indoor |
View Angle: |
178°/178°(H/V) |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Type: |
4*4 |
Customized Service: |
Yes |
Brand: |
Smart Display |
Application: |
Indoor |
View Angle: |
178°/178°(H/V) |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Type: |
4*4 |
Customized Service: |
Yes |
Brand: |
Smart Display |

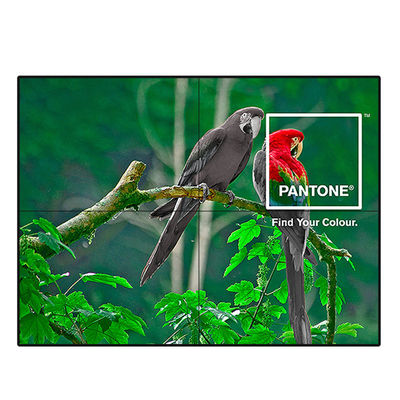

3x3 4X4 LCD Display Panel 4k video wall lcd video wall display lcd screen wall
Specification
| Product size table | ||||||
| Panel size | Bilateral seam | Panel Length | Panel Width | Panel Thickness | Panel Brand | Model No. |
| 46inch | 1.7mm | 1020.02mm | 574.61mm | 120.54mm | Samsung | LTI460HN15 |
| 46inch | 3.5mm | 1021.98mm | 576.57mm | 121.7mm | Samsung | LTI460HN11 |
| 46inch | 5.5mm | 1023.98mm | 578.57mm | 133mm | Samsung | LTI460HN09 |
| 49inch | 1.8mm | 1077.58mm | 607.8mm | 113.7mm | LG | LD490DUN-TJB2 |
| 49inch | 3.5mm | 1077.58mm | 607.8mm | 113.7mm | LG | LD490DUN-THC4 |
| 55inch | 1.8mm | 1213.5mm | 684.3mm | 110mm | LG | LD550DUN-THB8 |
| 55inch | 3.5mm | 1213.5mm | 684.30mm | 110mm | Samsung | LTI550HN11 |
Basic Parameters
| Panel Size | 46" | 49" | 55" | 65" |
| Panel Brand | with Samsung | LG | with Samsung/LG | with Samsung |
| Model | HBY-PJ460P | HBY-PJ490P | HBY-PJ550P | HBY-PJ650G |
| Pixel Pitch | 0.53025*0.53025mm | 0.55926*0.55926mm | 0.63*0.63mm | 0.372*0.372mm |
| Viewing Angle | 178H/178V | |||
| Response Time | <6ms | |||
| Display Color | 8Bit,16.7M | |||
| Contrast Ratio | 3500:1 | 1300:1 | 4500:1 | 4000:1 |
| Connectivity | HDMI/DVI/VGA/AV/RJ45/Audio/Display Port | |||
| Bezel Width | 1.7mm/3.5mm | 1.8mm/3.5mm | 0.88mm/1.7mm/1.8mm/3.5mm | 3.5mm |
| Brightness | 500cd/m2&700cd/m2 | 500cd/m2&700cd/m2 | 500cd/m2&700cd/m2 | 700cd/m2 |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
| Power supply | AC100-240V/50-60Hz | |||
| Sleep mode | 0.5W | |||
| Max comsumption | 180W | 200w | 220w | 350w |
| Net weight | 20kg | 25kg | 28kg | 40kg |
| Working Temp | 0-40℃ | |||
| Working Humidity | 10-90% | |||
| Operation | 7x24hrs | |||
| Life | >60,000hrs | |||
| Warranty |
Standard one year without artificial damage,can be extended to 3 years,lifelong maintenance |
|||
| Packing details: |
| 1. Rap the product with film and foam； |
| 2. Put the packaged product into the carton； |
| 3. Pack the carton into the export wooden box. |
| Carefully packed our product to make sure customer get perfect product from us. |
