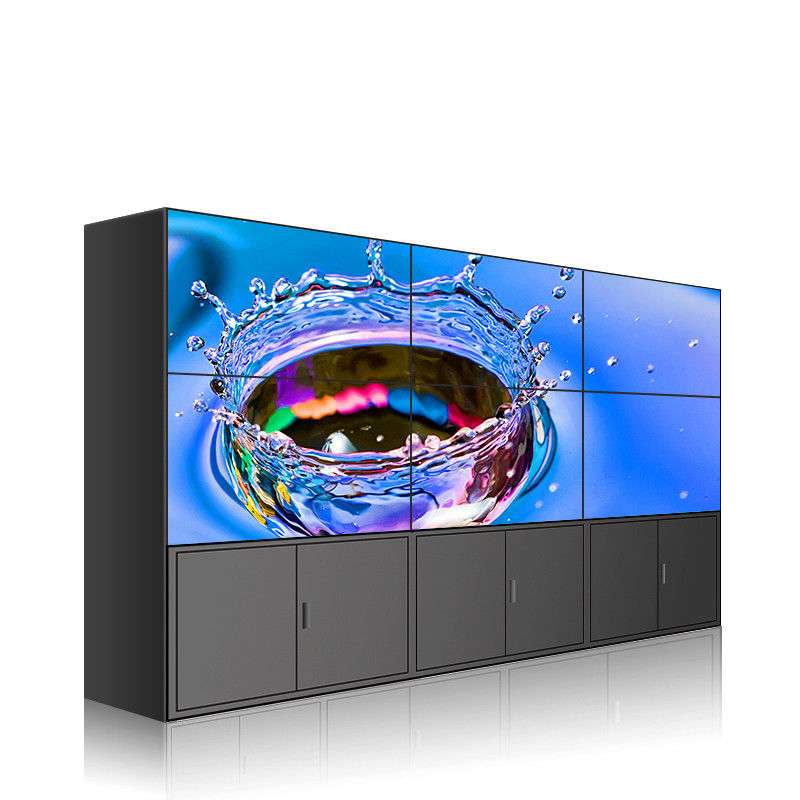

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display

Product Details

Place of Origin: China

Brand Name: Smart Display

Certification: CE,FCC, Rohs. CB

Model Number: SW-01

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Outer wooden box, middle carton, inner PE cotton

Delivery Time: 7-25

Payment Terms: TT

Supply Ability: 5000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    3x3 FHD DID display, 8 bit outdoor lcd advertising display, 55" lcd advertising screen 50Hz


Application:	Indoor	View Angle:	178°/178°(H/V)
Panel Parameter:	RGB Vertical Stripe	Bezel:	3.5mm
Size:	55inch	Display Colors:	8bit-16.7m
Customized Service:	Yes	Brand:	Smart Display

Application:	Indoor
View Angle:	178°/178°(H/V)
Panel Parameter:	RGB Vertical Stripe
Bezel:	3.5mm
Size:	55inch
Display Colors:	8bit-16.7m
Customized Service:	Yes
Brand:	Smart Display

Description

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display

50Hz LG LCD Video Wall Display 49Inch 3.5mm Bezel 3x3 FHD Resolution

Specification

Product size table
Panel size	Bilateral seam	Panel Length	Panel Width	Panel Thickness	Panel Brand	Model No.
46inch	1.7mm	1020.02mm	574.61mm	120.54mm	Samsung	LTI460HN15
46inch	3.5mm	1021.98mm	576.57mm	121.7mm	Samsung	LTI460HN11
46inch	5.5mm	1023.98mm	578.57mm	133mm	Samsung	LTI460HN09
49inch	1.8mm	1077.58mm	607.8mm	113.7mm	LG	LD490DUN-TJB2
49inch	3.5mm	1077.58mm	607.8mm	113.7mm	LG	LD490DUN-THC4
55inch	1.8mm	1213.5mm	684.3mm	110mm	LG	LD550DUN-THB8
55inch	3.5mm	1213.5mm	684.30mm	110mm	Samsung	LTI550HN11

Features:

1. Use DID panel

2. High brightness

3. Image processing technology

4. Better color saturation

5. A wider perspective

6, better reliability

7, high viewing angle

8, ultra-thin narrow bezel design

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display 0

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display 1

Video image processing

 A single signal can be spliced and displayed on any M×N display unit, M and N are both positive integers greater than or equal to 1;

 Supports arbitrary windowing and roaming of the input signal, supports layer overlay, and supports up to any layout of four layers on a single screen;

 A single screen supports up to 32 screen splits;

 Intelligent scaling technology, image scaling adopts intelligent multi-phase filtering algorithm, automatically selects the optimal filter coefficient according to the characteristics of the image, the image is close to the magnitude-scale scaling effect, ensuring more details, no jagged edges and good sharpness;

 Support multi-channel ultra-high resolution basemap;

 Supports multi-channel vector virtual LEDs, and supports both dynamic and static display modes. The display content, font, color, speed and other parameters can be edited at will;

 Supports seamless switching, the processor integrates a high-definition signal processing mechanism to ensure that there is no delay, no blue screen, no black screen and other intermediate transition states when the signal is switched;

 Support intelligent black border removal (arbitrary cropping of the input image), edge fusion, area enlargement and other real-time image processing functions;

 Support character superimposition of input signal, font type, size, background color, foreground color, display position and other parameters can be changed through the control software;

 Support automatic detection of input signals, real-time detection of whether each input port has signal access, input boards and client software have status indications;

 Support matrix switching, integrated matrix function inside the processor, support a single signal source to open multiple windows and display at the same time
