Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display

Certification
China Shenzhen Smart Display Technology Co.,Ltd certification
Customer Reviews
Bought digital signage 43inch , good perfomance

—— Richardo

I'm Online Chat Now

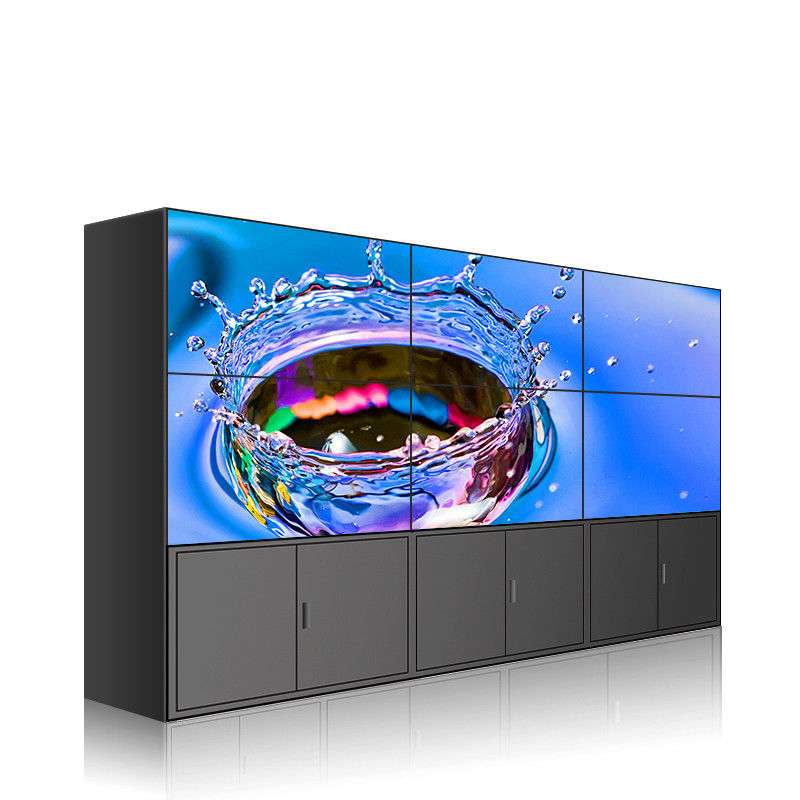

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display
Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display
Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display

Large Image :  Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display

Product Details:
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: SW-01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display

Description
Application: Indoor View Angle: 178°/178°(H/V)
Panel Parameter: RGB Vertical Stripe Bezel: 3.5mm
Size: 55inch Display Colors: 8bit-16.7m
High Light:

3x3 FHD DID display

,

8 bit outdoor lcd advertising display

,

55" lcd advertising screen 50Hz

50Hz LG LCD Video Wall Display 49Inch 3.5mm Bezel 3x3 FHD Resolution



Specification

Product size table
Panel size Bilateral seam Panel Length Panel Width Panel Thickness Panel Brand Model No.
46inch 1.7mm 1020.02mm 574.61mm 120.54mm Samsung LTI460HN15
46inch 3.5mm 1021.98mm 576.57mm 121.7mm Samsung LTI460HN11
46inch 5.5mm 1023.98mm 578.57mm 133mm Samsung LTI460HN09
49inch 1.8mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-TJB2
49inch 3.5mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-THC4
55inch 1.8mm 1213.5mm 684.3mm 110mm LG LD550DUN-THB8
55inch 3.5mm 1213.5mm 684.30mm 110mm Samsung LTI550HN11



Features:

1. Use DID panel

2. High brightness

3. Image processing technology

4. Better color saturation

5. A wider perspective

6, better reliability

7, high viewing angle

8, ultra-thin narrow bezel design




Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display 0

Outdoor 8 Bit 55" Lcd Advertising Screen 50Hz 3x3 FHD DID Display 1

Video image processing
 A single signal can be spliced ​​and displayed on any M×N display unit, M and N are both positive integers greater than or equal to 1;
 Supports arbitrary windowing and roaming of the input signal, supports layer overlay, and supports up to any layout of four layers on a single screen;
 A single screen supports up to 32 screen splits;
 Intelligent scaling technology, image scaling adopts intelligent multi-phase filtering algorithm, automatically selects the optimal filter coefficient according to the characteristics of the image, the image is close to the magnitude-scale scaling effect, ensuring more details, no jagged edges and good sharpness;
 Support multi-channel ultra-high resolution basemap;
 Supports multi-channel vector virtual LEDs, and supports both dynamic and static display modes. The display content, font, color, speed and other parameters can be edited at will;
 Supports seamless switching, the processor integrates a high-definition signal processing mechanism to ensure that there is no delay, no blue screen, no black screen and other intermediate transition states when the signal is switched;
 Support intelligent black border removal (arbitrary cropping of the input image), edge fusion, area enlargement and other real-time image processing functions;
 Support character superimposition of input signal, font type, size, background color, foreground color, display position and other parameters can be changed through the control software;
 Support automatic detection of input signals, real-time detection of whether each input port has signal access, input boards and client software have status indications;
 Support matrix switching, integrated matrix function inside the processor, support a single signal source to open multiple windows and display at the same time
