Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: SSN-10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Power Supply: |
110-220V |
Compatible HDMI Input/DVI: |
Yes |
4G/3G: |
Optional |
Usage: |
Indoor Advertising Transparent LCD Display |
Lead Time: |
7-10days |
Logo: |
Optional |
Name: |
Stretched LCD Display |
Size: |
28inch |
Customized Service: |
Yes |
Brand: |
Smart Display |
Power Supply: |
110-220V |
Compatible HDMI Input/DVI: |
Yes |
4G/3G: |
Optional |
Usage: |
Indoor Advertising Transparent LCD Display |
Lead Time: |
7-10days |
Logo: |
Optional |
Name: |
Stretched LCD Display |
Size: |
28inch |
Customized Service: |
Yes |
Brand: |
Smart Display |

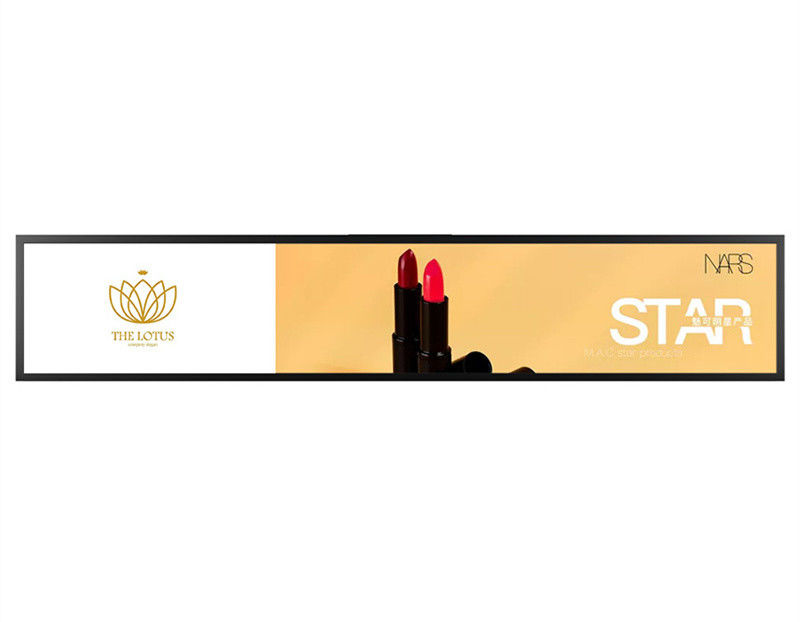

28 Inch Supermarket Full HD Digital Shelves Stretched LCD Display Signage
FHD Ultra Wide Stretched LCD Display Supermarket 28Inch Digital 21W
Specification
| Viewing Area(mm) | 698.4*131 |
| Outline Dimension(mm) | 729.3*167.3*19.4 |
| Video Format | MPGMPG-1MPG-2MPG-4AVIWMVRMRMVB |
| Image Format | JPG JPEG GIF PNG BMP |
| Audio Format | MP3 MPEG1/MPEG2 MP3 |
| Warranty | 1 year free for the whole machine, paid maintenance for life |
Features:
1, Playlist editor: Multimedia contents can play by playlist mode.
2, Scheduling playback: Publish task by calendar, then the appointed terminal/terminals would play accordingly.
3, Multi-languages: Support English, French, German, Italian, Swedish, Denmark, Portuguese, Spanish, Japanese....etc.
4, Multizone display: Video, photo, text, ppt, word, excel, flash, rss, wheather, clock, website can be display on different areas.
5, Timing function: Set time power ON/OFF and automatically display and loop, 7days and 24 hours no manual operation.
6, Protection plate: Files on SD card can be protected by protection plate from stolen.
7, Video/picture rotation: 90/180/270 degree. (vertical display or horizontal display).
8, Advanced functions: Support play log, customer logo.
9, Display type: Horizontal or vertical/ landscape or portrait.
10, Two speakers: Built-in stereo speakers (2x5W).
11, Files update: Files can be transmitted to SD card memory automatically from server throught network.
12, Touch screen: Optional.
13, Network options: LAN/WIFI/3G/4G.
14, Management software: With management software installed in server by which to control and group manage all terminals.
15, Rolling caption: Support running marquee function (roll caption, text bar).
16, Support memory size: 8GB-500GB.
17, Warranty: Standard one year, extra warranty is optional.
| Type | size | Spec. |
| shelf streched display | 23.1inch | Display area: 597.89mmx66.6mm Dimensions: 621.99mm(H)x91.8mm (V) Resolution: 1920X213 Brightness: 350cd/㎡ Metal stamping integrated molding, 1G+8G |
| 35inch | Display area: 878.4mm(H)x48.19mm (V) Dimensions: 891.6mm(H)x60.4mm (V) Display ratio:>3:1 (H:V) Resolution: 2880X158 Brightness: 350cd/㎡ Hardware Stamping one-piece mould,1G+8G | |
| 37inch | Display area: 875.43mm(H)x43.99mm (V) Dimensions: 895.1mm(H)x52.6mm (V) x21mm Display ratio:>3:1 (H:V) Resolution: 3840X120 Brightness: 500cd/㎡ Metal stamping integrated molding die,1G+8G | |
| 46.6inch | Display area: 1183.7mm(H)x37mm (V) Dimensions: 1203.3mm(H)x52.6mm (V) x21mm Display ratio:>3:1 (H:V) Resolution: 3840(H) × 120(V) ) Brightness: 500cd/㎡ ,1G+8G | |
| bar screen | 15.1inch | Display area: 374.78mmx64.5mm Dimensions: 402.58mm(H)x91.8mm (V) Resolution: 1280X235 Brightness: 700cd/㎡ Aluminum alloy wire drawing External tempered explosion-proof glass,1G+8G |
| 21.2inch | Display area: 518mm(H)x148mm (V) Dimensions: 544×178×28mm Resolution: 1920X550 Brightness: 400cd/㎡ Hardware CNC integrated molding mold,1G+8G |
|
| 24inch | Display area: 597.888mm(H)x112.104mm (V) Dimensions: 629.1mm(H)x143.5mm (V) Display ratio: >3:1 (H:V) Resolution: 1920X360 Brightness: 350cd/㎡ Hardware CNC integrated mould,1G+8G | |
| 24.5inch | Display area: 597.6mm(H)x168.08mm (V) Dimensions: 622×192×41mm Display ratio:>3:1 (H:V) Resolution: 1920X540 Brightness: 400cd/㎡ Hardware CNC integrated molding mold,1G+8G | |
| 36.5inch | Display area: 878mm(H)x242.6mm Dimensions: 906mm(H)x271x42mm (V) Resolution: 1920X540 Brightness: 500cd/㎡ Hardware CNC integrated molding mold ,1G+8G | |
| 36.5inch | Display area: 878mm(H)x242.6mm Dimensions: 906.4×271×42mm Resolution: 1920X540 Brightness: 500cd/㎡ Hardware CNC integrated molding mold ,1G+8G | |
| 43.8inch | Display area: 1071.36mm(H)x301.32mm Dimensions: 1099.7mm(H)x329.7x44mm (V) Resolution: 3840X1080 Brightness: 500cd/㎡ Hardware CNC integrated molding mold,1G+8G | |
| 49.5inch | Display area: 1210(H) × 340(V)mm Dimensions: 1238×369×51mm Resolution: 1920X540 Brightness: 500cd/㎡ Aluminum alloy metal sandblasting frame ,1G+8G | |
| 60inch | Display area: 1428.5mm(H)x535.6mm (V) Dimensions: 1456.9mm(H)x564mm (V) x53mm Resolution: 3840X1440 Brightness: 500cd/㎡ Aluminum alloy metal sandblasting frame ,1G+8G | |
| 68inch | Display area: 463.7mm(H)x1649mm (V) Dimensions: 1649mm(H)x510mm (V) x24mm Resolution: 1080X3840 Brightness: 500cd/㎡ Aluminum alloy metal sandblasting frame,1G+8G | |
| 80inch | Display area: × 598.32 mm (H×V) Dimensions: ×611.3×84.2mm Resolution: 3840 ×1080 Brightness: 400cd/㎡ ,1G+8G | |
| 88inch | Display area: 2148.48 × 598.32 mm (H×V) Dimensions: 2158.4×611.3×84.2mm Resolution: 3840 ×1080 Brightness: 700cd/㎡ ,1G+8G |
