Product Details
Place of Origin: CHINA
Brand Name: Smart Display
Certification: CE,FCC, ROHS ,CB
Model Number: ST-43
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: different price for different size
Packaging Details: carton+ wooden box/flight case
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 3000
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Size: |
86inch |
Type: |
Interactive Whiteboard |
Customized Service: |
Yes |
Brand: |
Smart Display |
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Size: |
86inch |
Type: |
Interactive Whiteboard |
Customized Service: |
Yes |
Brand: |
Smart Display |

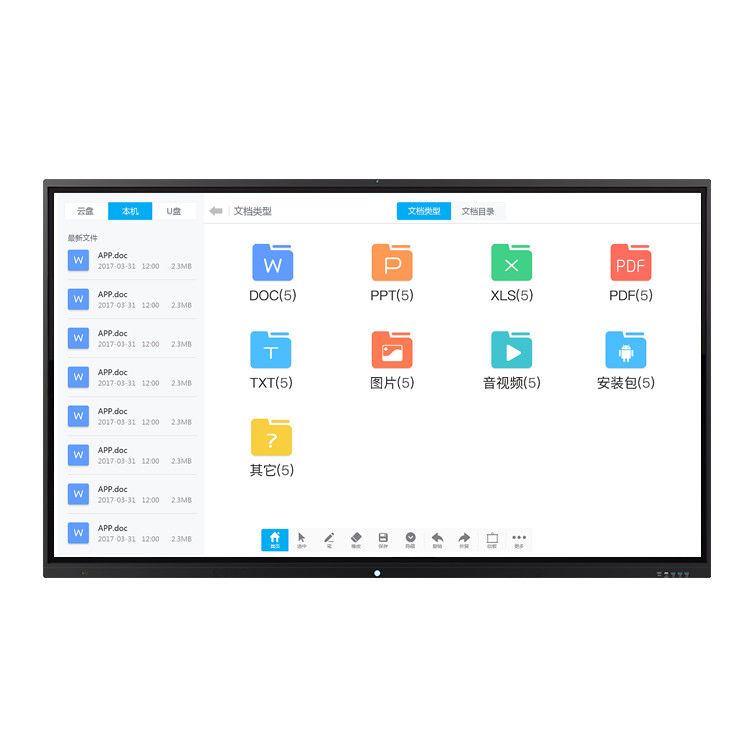

75'' online touch Screen OPS built-in all in one pc lcd touch screen interactive
whiteboard
OPS 68KG Touch Screen Interactive Whiteboard All In One 75inch For Online Teaching
Display Information | ||||
Screen Size | 55inch | 65inch | 75inch | 86inch |
Panel Type | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD |
Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 |
Resolution | 3840*2160P | 3840*2160P | 3840*2160P | 3840*2160P |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
Brightness | 320cd/m2 | 350cd/m2 | 350cd/m2 | 350cd/m2 |
Display area | 1209.6x 680.4mm | 1428.48x803.52mm | 1649.664x927.936mm | 1895.04×1065.96 mm |
Contrast Ratio | 4000:1 | 4000:1 | 1200:1 | 1200:1 |
Response Time | 8ms | 8ms | 8ms | 8ms |
Display Color | 8 bit 1.67M | 8 bit 1.67M | 10 bit 1.07B | 10 bit 1.07B |
Field Frequency | 60Hz | 60Hz | 60Hz | 60Hz |
Service Lifetime | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours |
Touch System | ||||
Sensing Type | Infrared System (Multi 10 point touch) | |||
Response Time | 6ms | |||
Connection | Full-speed USB (Driver free) | |||
Surface Protection | Tempered Glass with 4mm thickness Standard | |||
Graphic card | Intel HD Graphics, Supports 1080P, H264, 3D play | |||
Bluetooth | Bluetooth4.0 | |||
Speaker | 15W x2 | |||
Network | WIFI/ RJ45 | |||
Port | USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1 | |||
Built-in Dual System Android and Windows | ||||
Operating System | Android 7.0 | |||
CPU | Quad Core Cortex A7 1.8 GHZ | |||
RAM | DDR3 2G | |||
ROM | 32G | |||
SD card slot | Support MAX 128G | |||
Port | RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2, AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD card slot*1, Touch USB*2, MIC*1 | |||
Languages | English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc | |||
Power | ||||
Power Supply | 110~240V AC, 50/60Hz | |||
Power Consumption | 220W~500W | |||
Operating Temperature | 0℃~40℃ | |||
Storage Temperature | -20℃~60℃ | |||
Supplied Accessories | AC Power Cable, 4-in-1 Remote Control, whiteboard software | |||
Ambient Conditions | ||||
Dimension (L*W*H) | 1290.5*817.6*99.3mm | 1516.3*947.1*96mm | 1737.7*1072.6*103mm | 1991.1x1212.6x125.6mm |
Package L*W*H | 1427*963*232mm | 1646*1062*230mm | 1860*1230*260mm | 2136*1370x280mm |
Net weight | 40KG | 50KG | 68KG | 76KG |
FAQ
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: For the one have in stock finish product, the delivery time is within 3- 5 days; with
enclosure only in stock is 7-10 days; without in stock 20-25 days; for customized samples
and large quantities bulk order, the delivery time is 20-30 days.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q: Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
