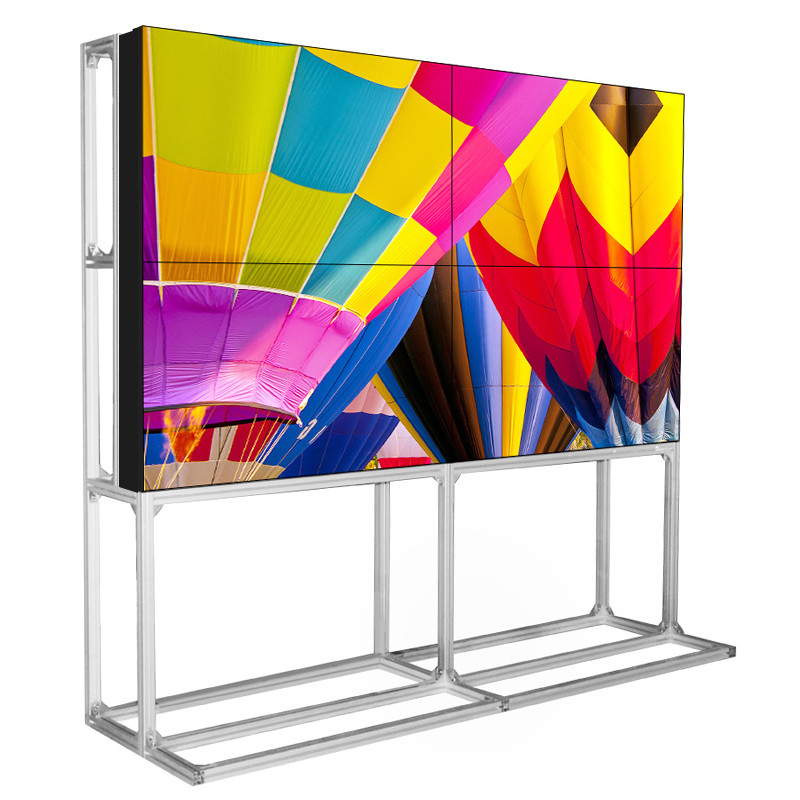

500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video

Name: 500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video
Brand: Smart Display
SKU: SW-01
Rating: 4.6 (179 reviews)

Product Details

Place of Origin: China

Brand Name: Smart Display

Certification: CE,FCC, Rohs. CB

Model Number: SW-01

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Outer wooden box, middle carton, inner PE cotton

Delivery Time: 7-25

Payment Terms: TT

Supply Ability: 5000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    500 nits digital signage display, 8ms digital signage screen, digital signage display bezel 3.5mm


Application:	Indoor	View Angle:	178°/178°(H/V)
Panel Parameter:	RGB Vertical Stripe	Bezel:	3.5mm
Size:	55inch	Display Colors:	8bit-16.7m
Customized Service:	Yes	Brand:	Smart Display

Application:	Indoor
View Angle:	178°/178°(H/V)
Panel Parameter:	RGB Vertical Stripe
Bezel:	3.5mm
Size:	55inch
Display Colors:	8bit-16.7m
Customized Service:	Yes
Brand:	Smart Display

Description

500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video

Specification

Product size table
Panel size	Bilateral seam	Panel Length	Panel Width	Panel Thickness	Panel Brand	Model No.
46inch	1.7mm	1020.02mm	574.61mm	120.54mm	Samsung	LTI460HN15
46inch	3.5mm	1021.98mm	576.57mm	121.7mm	Samsung	LTI460HN11
46inch	5.5mm	1023.98mm	578.57mm	133mm	Samsung	LTI460HN09
49inch	1.8mm	1077.58mm	607.8mm	113.7mm	LG	LD490DUN-TJB2
49inch	3.5mm	1077.58mm	607.8mm	113.7mm	LG	LD490DUN-THC4
55inch	1.8mm	1213.5mm	684.3mm	110mm	LG	LD550DUN-THB8
55inch	3.5mm	1213.5mm	684.30mm	110mm	Samsung	LTI550HN11

PECIFICATION

Item	Model No.	VW46W/ VW55W
Panel Parameter	Screen size	46inch / 55inch
	Pixel pitch	0.53025(H)x0.53025(V) / 0.630(H)x0.630(V)
	Resolution	1920X1080
	Brightness	500nits
	Contract Ratio	3000:1 / 4000 : 1
	Viewing angle	89/89/89/89
	Backlight	LED
	Color depth	16.7M
	Response time	<8ms
	Display area	1018.08(H)×572.67(V)/ 1209.6(H)×680.4(V)
	Bezel	3.5mm
interface	CVBS In / Out (BNC )	1/0
	VGA In / Out	1/0
	DVI In / Out	1/0
	HDMI In/Out	1/0
	DEBUG(USB)	1/0
control	IR remote control	Yes
	RS-232 In/Out	1/2
Physical	Dimension	46 inch : 1021.98mm(W) x576.57mm(H) x121.7mm(D) 55 inch : 1213.5mm(W) x684.3mm(H) x118mm(D)
	Frame color	Black
	Frame material	Metal
	Net weight	18.6Kg / 30Kg
Power	Power consumption	≦190W / ≦250W
	Standby	<1W
	Power supply	AC 100V-240V, 50/60Hz,Universal,±10%
Environment	Operating humidity	20-90% RH(no condensation)
	Storage humidity	10-90% RH (no condensation)
	Operating temperature	0 ~ 50° C / 32 ~ 122° F
	Storage temperature	-20 ~ 60° C / -4 ~ 140° F

500 Nits 8ms Digital Signage Display Bezel 3.5mm Floor Stand video 0

FAQ:

Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

Q: When will you make the delivery?

A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.

Q:what brand of screen are you using?

A:we are using Samsung,LG and AUO screen.

Q: Do you have your own enclosure factory?

A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.

Q:Do you give any discount ?

A: We are Manufacturer, so we are able to give you the best price and best service at the same time.

Q:What payment methods your company accept?

A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
