Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB

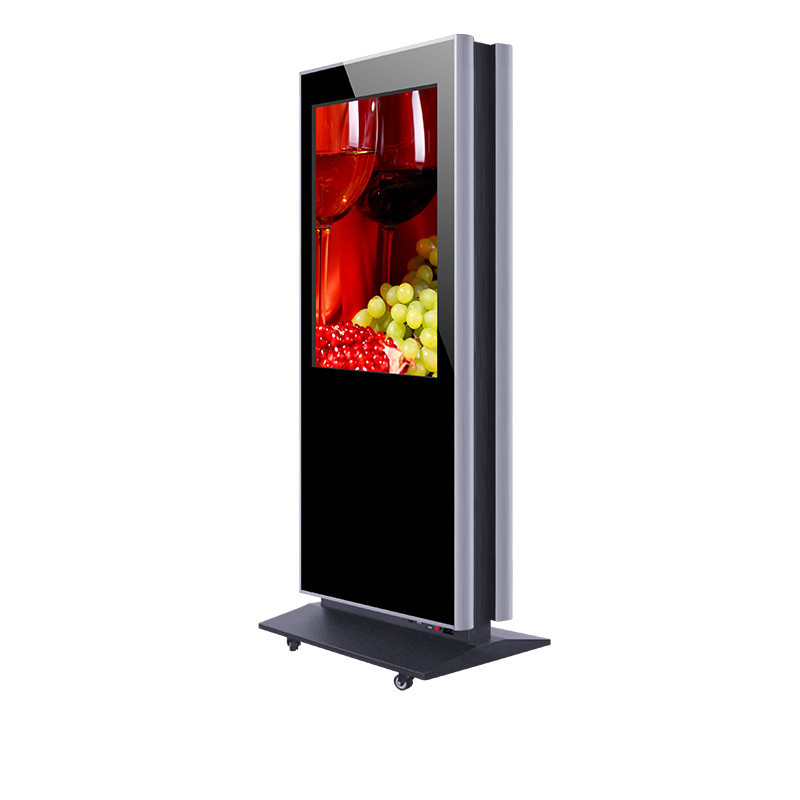

Model Number: 55"65"advertising display floor standing outdoor advertising lcd display 1500nits outdoor digital signage
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Name: |
LCD Advertising Display |
Logo: |
Optional |
Compatible HDMI Input/DVI: |
Yes |
Producion Time: |
7-10days |
4G/3G: |
Optional |
Usage: |
Indoor Advertising Transparent LCD Display |
Customized Service: |
Yes |
Brand: |
Smart Display |
Name: |
LCD Advertising Display |
Logo: |
Optional |
Compatible HDMI Input/DVI: |
Yes |
Producion Time: |
7-10days |
4G/3G: |
Optional |
Usage: |
Indoor Advertising Transparent LCD Display |
Customized Service: |
Yes |
Brand: |
Smart Display |
| Specification | ||||||||||
| Model No. | US-AD650LF,US-AD650NF | |||||||||
| Panel size | 65″ TFT-LCD | |||||||||
| Display area(mm)/mode | 1209.6×680.4 16:9 | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.63(H)×0.63(V) | |||||||||
| Brightness (nits) | 1500cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| RJ45 | Included(Network version only) | |||||||||
| 3G / WIFI Module | Included(Network version only) | |||||||||
| USB | 1 ( USB2.0 interface) | |||||||||
| SD | 1 (Compatible MMC/MS) | |||||||||
| CF | 1(optional) | |||||||||
| L/R audio input | 1 (RCA*2) | |||||||||
| L/R audio output | 1 (RCA*2) | |||||||||
| Speaker | 2×5W(9Ω) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Remote controller | IR Remote Controller | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||||
| Maximum power consumption | <=280W | |||||||||
| Standby power consumption | <5W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 20%~85% | |||||||||
| Storage humidity | 10%~90% | |||||||||
| Appearance | ||||||||||
| Color/appearance | White,black,customized | |||||||||
| Body Dimension | 1900(H)*886.78(L)*90(W)mm | |||||||||
| After packing size | 1990mm×1030mm×250mm | |||||||||
| Case | Metal case SPCC | |||||||||
| Installation | Floor-standing | |||||||||
| Gross Weight | 108kg | |||||||||
| Quality Standard | ISO9001,CCC | |||||||||
| Detailed functions | ||||||||||
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
| Audio format | Wave/MP3/WMA/AAC | |||||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
| Image resolution | 480P/720P/1080P | |||||||||
