Android 12 OS IPS NFC Smart TV Digital Signage Interactive LCD Screen

Product Details

Place of Origin: China

Brand Name: Smart Display

Certification: CE,FCC, Rohs. CB

Model Number: ST-43

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Outer wooden box, middle carton, inner PE cotton

Delivery Time: 7-25

Payment Terms: TT

Supply Ability: 5000pcs/month

Get Best Price
Contact Now
Life Time:
>60,000 Hours
Smart Display
I3 I5 I7
Customized Service:
Life Time:
>60,000 Hours
Smart Display
I3 I5 I7
Customized Service:

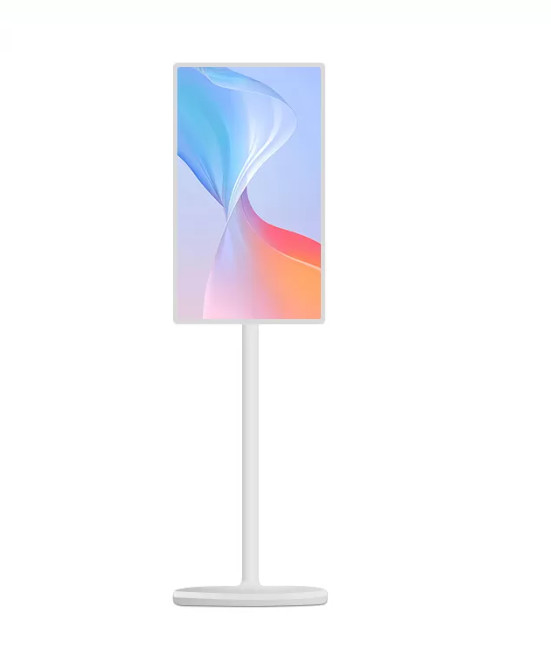

Android 12 OS IPS NFC Smart TV Digital Signage Interactive LCD Screen
Name 32-inch heart screen
Display parameters Effective display area 698.4(H) x 392.85 (V) (mm)
Display scale 16:9
Brightness 350cd/㎡
Contrast 1200:1
Color 8bits-true (16.7M)
Backlight type ELED
Maximum viewing Angle 178 °
Resolution 1920 * 1080
Machine parameters Input port USB2.0*2,, T-Flash*1, RJ45
Output port HDMI*1
Sound output power 2X5W
WIFI 2.4 G,
Bluetooth Bluetooth 4.0 support
Overall power consumption ≤45W
Standby power consumption 0.5 W or less
Whole life 30000
Input power 24V/5A (battery charge)
Overall dimensions 736.11 (length) x 430.51 (height) x 54.97 (thickness) mm
1415.9 (L) x 736.11 (H) x 428 (thick) mm (with stand)
Package dimensions 876 x 177.8 x 550 MM
Net weight 7.5 KG
Gross weight 10.0 KG
Working environment Working temperature: 0℃ ~ 50℃; Humidity: 10%RH ~ 80%RH;
Storage environment Storage temperature: -20℃ ~ 60℃; Storage humidity: 10%RH ~ 90%RH;
Android system parameters CPU RK3566, quad-core, up to 1.8GHz
GPU The Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1
Android version Android 11.0
OSD language Chinese, English
Mobile display rack parameters Height adjustment 170mm
Angle Rotation: clockwise 90°/ counter-clockwise 90°, tilt: up 22°/ down 22°
Casters 1 "cardan wheel *5
Net weight 3.25 KG
Gross weight 5.55 KG
Rod package dimensions 1320*284*154 MM
Net weight 8.45 KG
Gross weight 9.85 KG
Chassis package dimensions 504*129*504 MM
Switch/indicator light Red/Blue dual color, charging blue flashing, full blue light, red about half charge, low charge red flashing
Battery parameters Cell type Lithium iron phosphate battery
Rated capacity 230Wh
Nominal voltage 19.2 V
Charging port DC plug 2.5mm
Maximum charging current 5A
Size 220mm*170mm*30mm(Max)
Weight 2.5 kg
Capacitance parameters Glass material AC anti-glare tempered glass
Multi-touch Maximum touch points supported: ≦10 points
Number of Channels 95 channels
Scanning frequency Changes in scanning rate and measurement capacitance: ≥100KHZ
Wake up response time ms Time from finger touch to response: ≦15ms
Touch accuracy mm Deviation between the real position and the position reflected by the touch: ±2.0mm
Linearity Deviation from straight line touch: ±2.0mm
Touch separation mm Distance of two points that can be distinguished: 15mm
Sensitivity The sensitivity of the touch screen (click≤φ6mm, slip≤φ6mm: uniformly≤1.5mm)
Temperature range Operating temperature: -10℃~60℃
Working voltage DC5V
Operating power consumption ≥1W
Accessories Remote control Quantity: 1
AAA batteries Quantity: 1 pair
Power adapter Quantity: 24V/5A
Capacitive stylus Quantity: 1
Mobile display rack Quantity: 1 set
Featured Features 1, the shape is simple, the main body adopts geometric design,
2, fully fit capacitor process, compatible with Incell and Oncell, multi-channel capacitor touch, smooth touch writing.
3, built-in large capacity battery, normal working time 5 hours (actual use time will be affected by the temperature and the brightness/sound of the machine),
4, charging breathing light display, power status indicator light display
5, mobile display rack bionic nature tree design
6, support multi-angle display viewing.



Integrate into daily-life

A variety of features, a wireless design, and expanded connectivity with NFC, HDMI, and USB support, allow you to use it in more places, for more of the things you love to do


1. Can I put my logo on the product?



2. could you help to develop a new tooling product?


3. What payment method does your company accept?
We accept most payment methods and give preference to wire transfer

5. What is your product's warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system
certification, , FCC, CE, RoHS, HDMI, and other certifications, and have been consistently praised by our customers. The warranty period is one year. Our company supports online after-sales service to respond to your questions in time and help you solve the problem as soon as possible.
