Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: SW-01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Application: |
Indoor |
View Angle: |
178°/178°(H/V) |
Panel Parameter: |
RGB Vertical Stripe |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Type: |
Wall Mounted |
Resolution: |
1920*1080 /4k |
Customized Service: |
Yes |
Brand: |
Smart Display |
Application: |
Indoor |
View Angle: |
178°/178°(H/V) |
Panel Parameter: |
RGB Vertical Stripe |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Type: |
Wall Mounted |
Resolution: |
1920*1080 /4k |
Customized Service: |
Yes |
Brand: |
Smart Display |

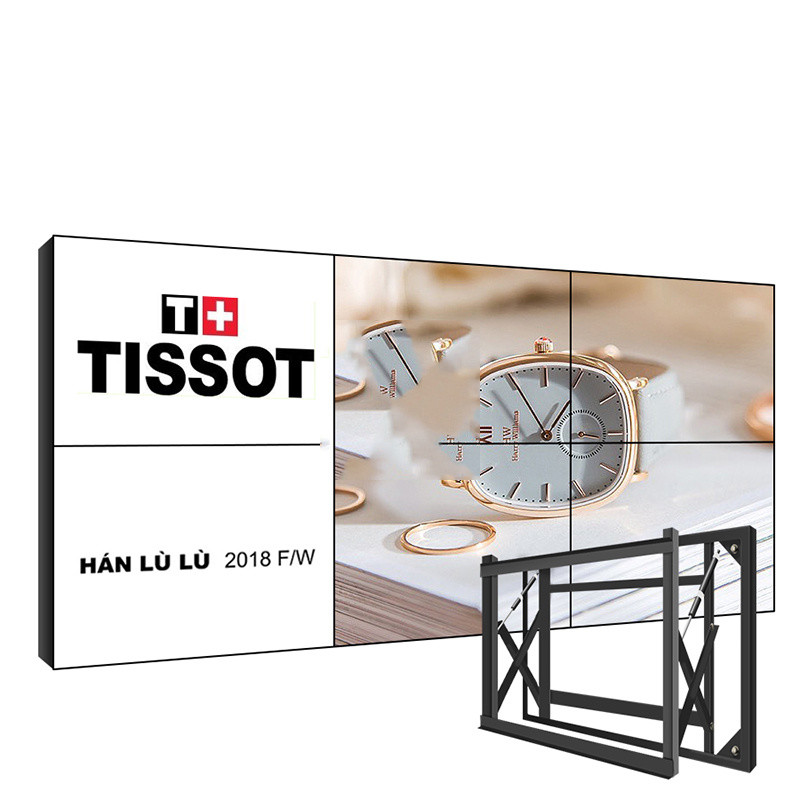

led screen video wall 3x3 lcd video wall lcd video monitor home video wall 4x4 seamless lcd video wall
| Product size table | ||||||
| Panel size | Bilateral seam | Panel Length | Panel Width | Panel Thickness | Panel Brand | Model No. |
| 46inch | 1.7mm | 1020.02mm | 574.61mm | 120.54mm | Samsung | LTI460HN15 |
| 46inch | 3.5mm | 1021.98mm | 576.57mm | 121.7mm | Samsung | LTI460HN11 |
| 46inch | 5.5mm | 1023.98mm | 578.57mm | 133mm | Samsung | LTI460HN09 |
| 49inch | 1.8mm | 1077.58mm | 607.8mm | 113.7mm | LG | LD490DUN-TJB2 |
| 49inch | 3.5mm | 1077.58mm | 607.8mm | 113.7mm | LG | LD490DUN-THC4 |
| 55inch | 1.8mm | 1213.5mm | 684.3mm | 110mm | LG | LD550DUN-THB8 |
| 55inch | 3.5mm | 1213.5mm | 684.30mm | 110mm | Samsung | LTI550HN11 |
| Panel | Brand | S-series | L-series | B-series |
| Panel size | 46 55 65 inch optional | 49 55 inch optional | 46 49 55 inch optional | |
| Bezel | 1.7/3.5/5.5mm | 0.88/1.8/3.5mm | 0.99/3.5mm | |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | |
| Brightness | 500~700 cd/m² | 500~700 cd/m² | 500~700 cd/m² | |
| Constract ratio | 1200:1, 3500:1, 4000:1 | 1200:1, 1300:1, 1400:1 | 1300:1, 1400:1 | |
| Viewing angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | |
| Color | 16.7M , 72% (CIE1931) | 16.7M , 72% (CIE1931) | 16.7M , 72% (CIE1931) | |
| Backlit | WLED | WLED | WLED | |
| Frequency | 60Hz | 60Hz | 60Hz | |
| Signal interface | LVDS | LVDS | LVDS | |
| Repond time | 8ms | 8ms | 8ms | |
| Life spang | 60000 hours | 60000 hours | 60000 hours | |
| I/O | Interface | HD Interface, VGA in, DVI, BNC, Support Picture in Picture(PIP/POP/PAP) | ||
| Concatenation port | RS232-RJ45 in/out | |||
| Video | Color system | PAL/NTSC/Auto-Identify | ||
| Scene roaming | Support | |||
| Power | Power input | Build-in type, 100 ~ 240V AC, 50/60Hz | ||
| Power consumption | 180W (Max.); standby power lesss than 3w | |||
| Outlook | Shell material | Cold-rolled sheet, black | ||
| Screen position | Landscape, protrait optional | |||
| Unit demenssion | 1210.81(L)*681.52(W)*63.24+45(thickness)mm | |||
| Optional | Installation | Floor standing cabinet/bracket, and wall mounted bracket optional | ||
| Touch screen | IR touch screen optional | |||
| Splitter & matrix | 1ch in, 4/8/12/16ch out splitter optional; Matrix optional | |||
| Package | Unite Package | PE film + Foam corner protector + honeycomb box | ||
| Export Package | Export wooden box or wooden pallet | |||
| Accessories | HD cable, RJ45 cable, remote control*1, IR sensor*1 | |||
|
Hot Sales (3 models)
|
||||
|
Model
|
46 inch 3.5mm Video wall screen specification
|
|||
|
Contrast
|
3000:01:00
|
|||
|
Display color
|
16.7M
|
|||
|
Response time
|
8ms
|
|||
|
Viewing angle
|
89/89/89/89(Typ)
|
|||
|
working frequency
|
60HZ
|
|||
|
Stitching
|
3.5mm
|
|||
|
USB input
|
(usb * 1) can be upgraded to support video picture media playback
|
|||
|
HDTV input
|
(HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible
|
|||
| with 4k, customization required | ||||
|
VGA input
|
(vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
|
|||
|
DVI input
|
(dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
|
|||
| 4k needs customization | ||||
|
BNC input
|
(bnc * 1) Support ntsc pal and other formats
|
|||
|
Remote Receive Input
|
(debug * 1) Remote control signal transmission
|
|||
|
RJ45 input
|
(rj45 * 1) rs232 signal input
|
|||
|
RJ45 output
|
(rj45 * 2) rs232 signal output
|
|||
|
BNC output
|
(bnc * 1) Support ntsc pal and other formats
|
|||
|
Show diagonal
|
AC220V 50/60Hz
|
|||
|
Dimensions
|
<=240W
|
|||
|
Display area
|
3W
|
|||
|
Zoom
|
0～50℃
|
|||
|
Panel type
|
-20～65℃
|
|||
|
Resolution
|
Simplified Chinese, Traditional Chinese, English and other languages
|
|||
|
Dot Pitch
|
18KG
|
|||
|
brightness
|
Wall-mounted, embedded, floor-standing, front maintenance, cabinet
|
|||
|
Model
|
55 inch 1.7mm Video Wall Screen Specification
|
|||
|
Show diagonal
|
55 "
|
|||
|
Outline size
|
1211.54(W)*682.34(H)*118.2(D)mm
|
|||
|
Display area
|
1209.6(W)*680.4(H)mm
|
|||
|
display scale
|
LED backlight
|
|||
|
Resolving power
|
1920(RGB)X1080,FHD
|
|||
|
Point spacing
|
0.210(H)*0.630(V)
|
|||
|
brightness
|
500CD/M
|
|||
|
contrast ratio
|
4000:01:00
|
|||
|
Display color
|
16.7M
|
|||
|
response time
|
8ms
|
|||
|
viewing angle
|
89/89/89/89(Typ)
|
|||
|
working frequency
|
60HZ
|
|||
|
Splicing joint
|
1.7mm
|
|||
|
USB input
|
(USB * 1) upgradeable video picture media playback
|
|||
|
HDTV input
|
(HDTV * 1) support 1920 * 1080 @ 60Hz signal input, downward
|
|||
| compatible 4K, customized | ||||
|
VGA input
|
(VGA * 1) support 1920 * 1080 @ 60Hz signal input and downward
|
|||
| compatibility | ||||
|
DVI input
|
(DVI * 1) support 1920 * 1080 @ 60Hz signal input and downward
|
|||
| compatibility 4K needs customization | ||||
|
BNC input
|
(BNC * 1) support NTSC pal and other systems
|
|||
|
Remote control
|
(debug * 1) remote control signal transmission
|
|||
| receiving input | ||||
|
RJ45 input
|
(RJ45 * 1) RS232 signal input
|
|||
|
RJ45 output
|
(RJ45 * 2) RS232 signal output
|
|||
|
BNC output
|
(BNC * 1) support NTSC pal and other systems
|
|||
|
working voltage
|
AC220V 50/60Hz
|
|||
|
Product power
|
Less than 240W
|
|||
| consumption | ||||
|
standby power
|
3W
|
|||
|
working temperature
|
0~ 50 C
|
|||
|
Storage temperature
|
-20~ 65 C
|
|||
|
Menu language
|
Simplified Chinese, traditional Chinese, English and other multi-national
|
|||
| languages | ||||
|
Installation mode
|
Wall mounted, embedded, floor standing, front maintenance, cabinet
|
|||
|
Model
|
49 inch 3.5MM splicing unit specifications
|
|||
|
Diagonal display
|
49 "
|
|||
|
Display area
|
1073.8 (W) *604.0(H)mm
|
|||
|
Zoom
|
led Backlight
|
|||
|
Panel Type
|
LED backlight
|
|||
|
Resolution
|
1920(RGB)X1080, FHD
|
|||
|
Spacing
|
0.1864 (H) * 0.5593 (V)
|
|||
|
brightness
|
450CD / M²
|
|||
|
Contrast
|
1300:01:00
|
|||
|
Color display
|
16.7M
|
|||
|
response time
|
8ms
|
|||
|
Viewing angle
|
89/89/89/89(Typ)
|
|||
|
working frequency
|
60HZ
|
|||
|
Patchwork stitching
|
3.5mm
|
|||
|
USB input
|
(USB * 1) can be upgraded media player supports video pictures
|
|||
|
HDTV input
|
(HDTV * 1) * Support 1920 1080 @ 60HZ signal input is backward
|
|||
| compatible with 4K be customized | ||||
|
VGA Entry
|
(VGA * 1) * Support 1920 1080 @ 60HZ signal inputs can be
|
|||
| backward compatible | ||||
|
DVI Entry
|
(DVI * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward
|
|||
| compatible 4K be customized | ||||
|
BNC Entry
|
(BNC * 1)And other standard support NTSC PAL
|
|||
|
Remote control receiver input
|
(DEBUG * 1) the remote control signal transmission
|
|||
|
RJ45 input
|
(RJ45 * 1) RS232 input signal
|
|||
|
RJ45 output
|
(RJ45 * 2) RS232 signal output
|
|||
|
BNC output
|
(BNC * 1)And other standard support NTSC PAL
|
|||
|
Operating Voltage
|
AC220V 50 / 60Hz
|
|||
|
Power consumption
|
≤240W
|
|||
|
Standby power consumption
|
3W
|
|||
|
Operating temperature
|
0~ 50 C
|
|||
|
storage temperature
|
-20~ 65 C
|
|||
|
Menu language
|
Simplified Chinese, Traditional Chinese, English and other languages
|
|||
|
Installation mode
|
Wall-mounted, embedded, floor, before the maintenance, cabinet
|
|||
FAQ
Q: For the first order, can we place a sample order?
A: It's our honor to offer you sample.
Q: About the quality control, how will your factory guarantee it?
A:Quality is priority. We have Total Quality Management System to control LCD advertising equipment's quality. We have our own professional engineers who have rich developing and researching lcd advertising equipment experience. In the meain time our factory has gained FCC, CE, RoHS authentication, etc.
Q:What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on quantity and customer's requirement.
Q:How does your manufacturer do regarding quanlity control?
