PIP Multi Screen Frameless Video Wall 3.5mm Bezel NTSC Auto Identify

Product Details

Place of Origin: China

Brand Name: Smart Display

Certification: CE,FCC, Rohs. CB

Model Number: SW-01

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Outer wooden box, middle carton, inner PE cotton

Delivery Time: 7-25

Payment Terms: TT

Supply Ability: 5000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

PIP frameless video wall

,

multi screen video wall 3.5mm bezel

,

frameless video wall NTSC

Signal:
HDMI
View Angle:
178°/178°(H/V)
Panel Parameter:
RGB Vertical Stripe
Bezel:
3.5mm
Size:
55inch
Display Colors:
8bit-16.7m
Type:
Wall Mounted
Resolution:
1920*1080 /4k
Customized Service:
Yes
Brand:
Smart Display
Signal:
HDMI
View Angle:
178°/178°(H/V)
Panel Parameter:
RGB Vertical Stripe
Bezel:
3.5mm
Size:
55inch
Display Colors:
8bit-16.7m
Type:
Wall Mounted
Resolution:
1920*1080 /4k
Customized Service:
Yes
Brand:
Smart Display
Description
PIP Multi Screen Frameless Video Wall 3.5mm Bezel NTSC Auto Identify

led screen video wall 3x3 lcd video wall lcd video monitor home video wall 4x4 seamless lcd video wall



Product size table
Panel size Bilateral seam Panel Length Panel Width Panel Thickness Panel Brand Model No.
46inch 1.7mm 1020.02mm 574.61mm 120.54mm Samsung LTI460HN15
46inch 3.5mm 1021.98mm 576.57mm 121.7mm Samsung LTI460HN11
46inch 5.5mm 1023.98mm 578.57mm 133mm Samsung LTI460HN09
49inch 1.8mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-TJB2
49inch 3.5mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-THC4
55inch 1.8mm 1213.5mm 684.3mm 110mm LG LD550DUN-THB8
55inch 3.5mm 1213.5mm 684.30mm 110mm Samsung LTI550HN11



Panel Brand S-series L-series B-series
Panel size 46 55 65 inch optional 49 55 inch optional 46 49 55 inch optional
Bezel 1.7/3.5/5.5mm 0.88/1.8/3.5mm 0.99/3.5mm
Resolution 1920×1080 1920×1080 1920×1080
Brightness 500~700 cd/m² 500~700 cd/m² 500~700 cd/m²
Constract ratio 1200:1, 3500:1, 4000:1 1200:1, 1300:1, 1400:1 1300:1, 1400:1
Viewing angle 89/89/89/89 89/89/89/89 89/89/89/89
Color 16.7M , 72% (CIE1931) 16.7M , 72% (CIE1931) 16.7M , 72% (CIE1931)
Backlit WLED WLED WLED
Frequency 60Hz 60Hz 60Hz
Signal interface LVDS LVDS LVDS
Repond time 8ms 8ms 8ms
Life spang 60000 hours 60000 hours 60000 hours
I/O Interface HD Interface, VGA in, DVI, BNC, Support Picture in Picture(PIP/POP/PAP)
Concatenation port RS232-RJ45 in/out
Video Color system PAL/NTSC/Auto-Identify
Scene roaming Support
Power Power input Build-in type, 100 ~ 240V AC, 50/60Hz
Power consumption 180W (Max.); standby power lesss than 3w
Outlook Shell material Cold-rolled sheet, black
Screen position Landscape, protrait optional
Unit demenssion 1210.81(L)*681.52(W)*63.24+45(thickness)mm
Optional Installation Floor standing cabinet/bracket, and wall mounted bracket optional
Touch screen IR touch screen optional
Splitter & matrix 1ch in, 4/8/12/16ch out splitter optional; Matrix optional
Package Unite Package PE film + Foam corner protector + honeycomb box
Export Package Export wooden box or wooden pallet
Accessories HD cable, RJ45 cable, remote control*1, IR sensor*1

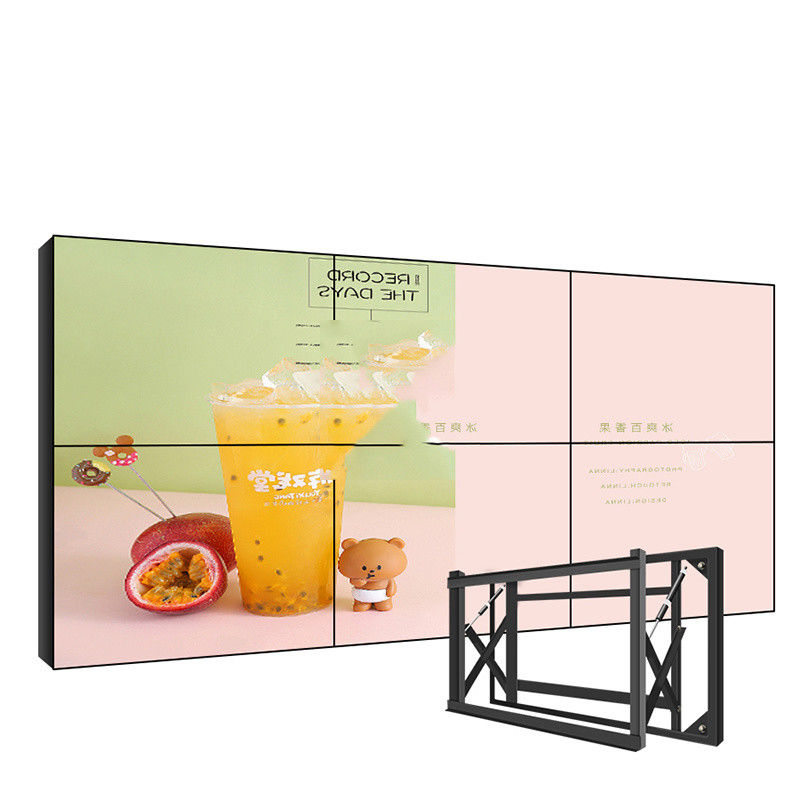

PIP Multi Screen Frameless Video Wall 3.5mm Bezel NTSC Auto Identify 0

PIP Multi Screen Frameless Video Wall 3.5mm Bezel NTSC Auto Identify 1



PIP Multi Screen Frameless Video Wall 3.5mm Bezel NTSC Auto Identify 2


Hot Sales (3 models)

Model
46 inch 3.5mm Video wall screen specification
Contrast
3000:01:00
Display color
16.7M
Response time
8ms
Viewing angle
89/89/89/89(Typ)
working frequency
60HZ
Stitching
3.5mm
USB input
(usb * 1) can be upgraded to support video picture media playback
HDTV input
(HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible

with 4k, customization required
VGA input
(vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
DVI input
(dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
4k needs customization
BNC input
(bnc * 1) Support ntsc pal and other formats
Remote Receive Input
(debug * 1) Remote control signal transmission
RJ45 input
(rj45 * 1) rs232 signal input
RJ45 output
(rj45 * 2) rs232 signal output
BNC output
(bnc * 1) Support ntsc pal and other formats
Show diagonal
AC220V 50/60Hz
Dimensions
<=240W
Display area
3W
Zoom
0~50℃
Panel type
-20~65℃
Resolution
Simplified Chinese, Traditional Chinese, English and other languages
Dot Pitch
18KG
brightness
Wall-mounted, embedded, floor-standing, front maintenance, cabinet
Model
55 inch 1.7mm Video Wall Screen Specification
Show diagonal
55 "
Outline size
1211.54(W)*682.34(H)*118.2(D)mm
Display area
1209.6(W)*680.4(H)mm
display scale
LED backlight
Resolving power
1920(RGB)X1080,FHD
Point spacing
0.210(H)*0.630(V)
brightness
500CD/M
contrast ratio
4000:01:00
Display color
16.7M
response time
8ms
viewing angle
89/89/89/89(Typ)
working frequency
60HZ
Splicing joint
1.7mm
USB input
(USB * 1) upgradeable video picture media playback
HDTV input
(HDTV * 1) support 1920 * 1080 @ 60Hz signal input, downward

compatible 4K, customized
VGA input
(VGA * 1) support 1920 * 1080 @ 60Hz signal input and downward

compatibility
DVI input
(DVI * 1) support 1920 * 1080 @ 60Hz signal input and downward

compatibility 4K needs customization
BNC input
(BNC * 1) support NTSC pal and other systems
Remote control

(debug * 1) remote control signal transmission
receiving input
RJ45 input
(RJ45 * 1) RS232 signal input
RJ45 output
(RJ45 * 2) RS232 signal output
BNC output
(BNC * 1) support NTSC pal and other systems
working voltage
AC220V 50/60Hz
Product power

Less than 240W
consumption
standby power
3W
working temperature
0~ 50 C
Storage temperature
-20~ 65 C
Menu language
Simplified Chinese, traditional Chinese, English and other multi-national

languages
Installation mode
Wall mounted, embedded, floor standing, front maintenance, cabinet
Model
49 inch 3.5MM splicing unit specifications
Diagonal display
49 "
Display area
1073.8 (W) *604.0(H)mm
Zoom
led Backlight
Panel Type
LED backlight
Resolution
1920(RGB)X1080, FHD
Spacing
0.1864 (H) * 0.5593 (V)
brightness
450CD / M²
Contrast
1300:01:00
Color display
16.7M
response time
8ms
Viewing angle
89/89/89/89(Typ)
working frequency
60HZ
Patchwork stitching
3.5mm
USB input
(USB * 1) can be upgraded media player supports video pictures
HDTV input
(HDTV * 1) * Support 1920 1080 @ 60HZ signal input is backward

compatible with 4K be customized
VGA Entry
(VGA * 1) * Support 1920 1080 @ 60HZ signal inputs can be

backward compatible
DVI Entry
(DVI * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward

compatible 4K be customized
BNC Entry
(BNC * 1)And other standard support NTSC PAL
Remote control receiver input
(DEBUG * 1) the remote control signal transmission
RJ45 input
(RJ45 * 1) RS232 input signal
RJ45 output
(RJ45 * 2) RS232 signal output
BNC output
(BNC * 1)And other standard support NTSC PAL
Operating Voltage
AC220V 50 / 60Hz
Power consumption
≤240W
Standby power consumption
3W
Operating temperature
0~ 50 C
storage temperature
-20~ 65 C
Menu language
Simplified Chinese, Traditional Chinese, English and other languages
Installation mode
Wall-mounted, embedded, floor, before the maintenance, cabinet



Video image processing
 A single signal can be spliced ​​and displayed on any M×N display unit, M and N are both positive integers greater than or equal to 1;
 Supports arbitrary windowing and roaming of the input signal, supports layer overlay, and supports up to any layout of four layers on a single screen;
 A single screen supports up to 32 screen splits;
 Intelligent scaling technology, image scaling adopts intelligent multi-phase filtering algorithm, automatically selects the optimal filter coefficient according to the characteristics of the image, the image is close to the magnitude-scale scaling effect, ensuring more details, no jagged edges and good sharpness;
 Support multi-channel ultra-high resolution basemap;
 Supports multi-channel vector virtual LEDs, and supports both dynamic and static display modes. The display content, font, color, speed and other parameters can be edited at will;
 Supports seamless switching, the processor integrates a high-definition signal processing mechanism to ensure that there is no delay, no blue screen, no black screen and other intermediate transition states when the signal is switched;
 Support intelligent black border removal (arbitrary cropping of the input image), edge fusion, area enlargement and other real-time image processing functions;
 Support character superimposition of input signal, font type, size, background color, foreground color, display position and other parameters can be changed through the control software;
 Support automatic detection of input signals, real-time detection of whether each input port has signal access, input boards and client software have status indications;
 Support matrix switching, integrated matrix function inside the processor, support a single signal source to open multiple windows and display at the same time
