16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges

Certification
China Shenzhen Smart Display Technology Co.,Ltd certification
Customer Reviews
Bought digital signage 43inch , good perfomance

—— Richardo

I'm Online Chat Now

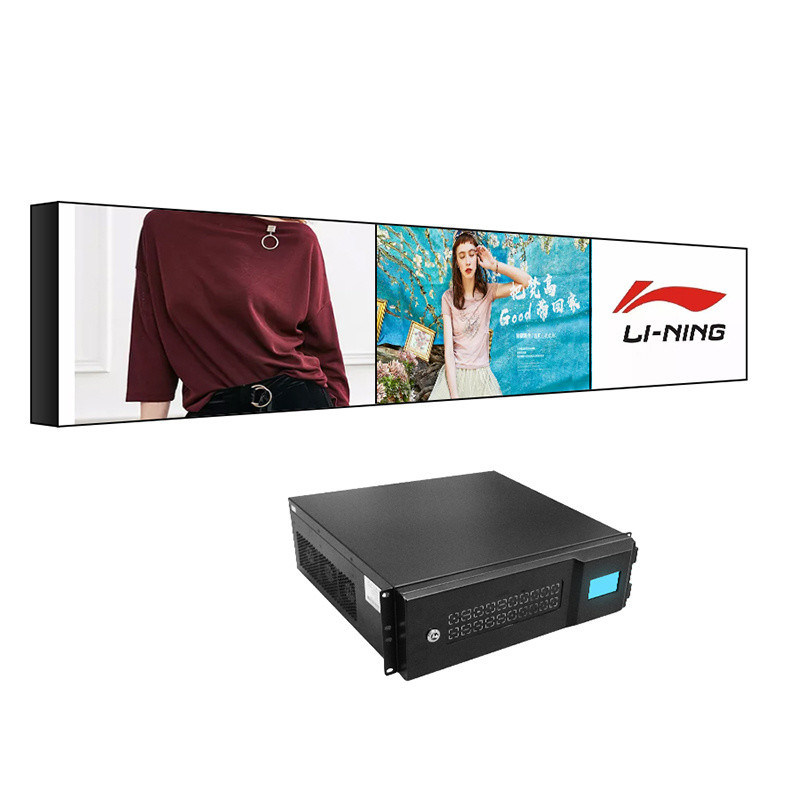

16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges

16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges
16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges 16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges

Large Image :  16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges

Product Details:
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: SW-01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month

16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges

Description
Application: Indoor View Angle: 178°/178°(H/V)
Panel Parameter: RGB Vertical Stripe Bezel: 3.5mm
Size: 55inch Display Colors: 8bit-16.7m
High Light:

2x3 video wall 1209.6x680.4mm

,

2x3 video wall horizontal bar

,

16/9 conference room video wall

49inch 55inch 65inch Wall Mount Indoor Hd Video lcd video wall display 2x3 video wall



Specification

Product size table
Panel size Bilateral seam Panel Length Panel Width Panel Thickness Panel Brand Model No.
46inch 1.7mm 1020.02mm 574.61mm 120.54mm Samsung LTI460HN15
46inch 3.5mm 1021.98mm 576.57mm 121.7mm Samsung LTI460HN11
46inch 5.5mm 1023.98mm 578.57mm 133mm Samsung LTI460HN09
49inch 1.8mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-TJB2
49inch 3.5mm 1077.58mm 607.8mm 113.7mm LG LD490DUN-THC4
55inch 1.8mm 1213.5mm 684.3mm 110mm LG LD550DUN-THB8
55inch 3.5mm 1213.5mm 684.30mm 110mm Samsung LTI550HN11




Product Description







1

Product



Parameters

Panel 55 inch LTI550HN11
Resolution 1920*1080
Aspect ratio 16:9
Response time 5ms
Brightness 500cd/m2
Contrast ratio 3000:1
Color 1.07G
Display area 1209.6x680.4mm
Machine size 1213.5x684.3x115.2mm
Bezel 3.5mm
Visual angle 178
Interface AV/VGA/DVI/
Input power AC 100-240v,50-60HZ
Product color Black



2

Optional



Accessories(charges)

wall mount rack normal/curve/Containing edges(200mm)
Front maintenance bracket 136mm
Floor stand horizontal bar/parallel bars/curve
HDMI spliter 8/16 interface
HDMI HD cable 3m length
converter USB transform to RS232(COM)



3

Accessories(free) net cable RJ45,2m length
Control software DID split control software



16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges 0

16/9 2x3 Video Wall 1209.6x680.4mm Horizontal Bar Containing Edges 1

FAQ



1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
2. Q: How does your factory do regarding quality control?
A:Quality is priority.KINGSUN people always attach great importance to quality controlling from the very beginning to the very end.
We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities of your order.
6.Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.
