Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: SW-01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Application: |
Indoor |
Panel Parameter: |
RGB Vertical Stripe |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Resolution: |
1920*1080 /4k |
Customized Service: |
Yes |
Brand: |
Smart Display |
Application: |
Indoor |
Panel Parameter: |
RGB Vertical Stripe |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Resolution: |
1920*1080 /4k |
Customized Service: |
Yes |
Brand: |
Smart Display |

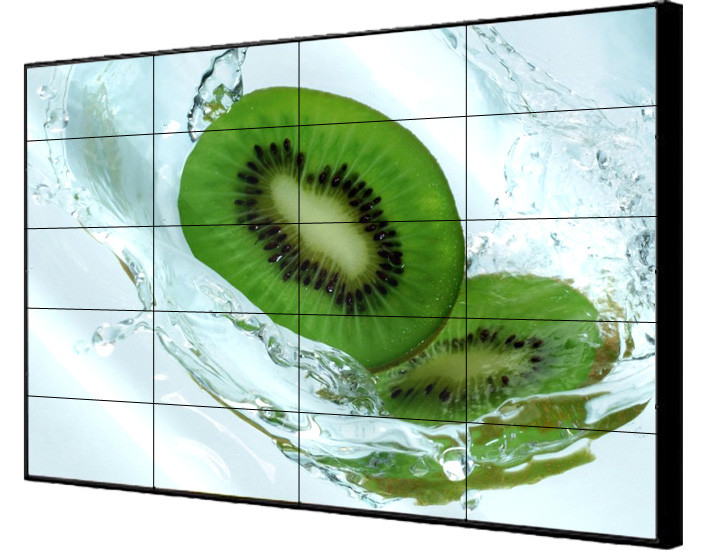

RGB 3.5mm Free Stand LCD Video Wall Display Panel With Aluminum Frame
LCD 55 Inch Narrow Bezel Video Wall FHD Resolution With Cabinet
Product Size Table |
||||||
Panel size |
Bilateral seam |
Panel Length |
Panel Width |
Panel Thickness |
Panel Brand |
Model No. |
46inch |
1.7mm |
1020.02mm |
574.61mm |
120.54mm |
Samsung |
LTI460HN15 |
46inch |
3.5mm |
1021.98mm |
576.57mm |
121.7mm |
Samsung |
LTI460HN11 |
46inch |
5.5mm |
1023.98mm |
578.57mm |
133mm |
Samsung |
LTI460HN09 |
49inch |
1.8mm |
1077.58mm |
607.8mm |
113.7mm |
LG |
LD490DUN-TJB2 |
49inch |
3.5mm |
1077.58mm |
607.8mm |
113.7mm |
LG |
LD490DUN-THC4 |
55inch |
1.8mm |
1213.5mm |
684.3mm |
110mm |
LG |
LD550DUN-THB8 |
55inch |
3.5mm |
1213.5mm |
684.30mm |
110mm |
Samsung |
LTI550HN11 |
Super Narrow Bezel for Video Walls
The features an ultra-slim 3.5 mm bezel-to-bezel dimension for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 6×6 in size without the need for any additional external video wall controller. By combining a narrow bezel display with the benefits of a high brightness LED backlight, these displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers and storefront window displays.
Panel Specifications | |
LCD TechnologyLG | LG IPS-LCD |
Active Screen Diagonal | 55" (1397mm) |
Pixel Pitch(WxH) | 0.630x0.630mm |
Active Display Area(WxH) | 1209.6x680.4mm |
Panel Dimension(WxHxD) | 1215.3x686.1x64mm |
Total Bezel Width | 0.8mm | 0mm/1.8mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | WLED |
Luminance(nits) | 450cd/sqm |
Contrast | 1200:1 (typ.) |
Viewing Angle | H 178°|V 178° |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | <=250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor/Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 85% non-condensing |
Storage Temperature | -20-60°C | -4-149°F |
Storage Humidity | 85% non-condensing |
Processor | |
DVI-I DUAL LINK | 1 |
HDMI | 1 |
VGA | 1 |
CVBS IN | 1 |
CVBS OUT | 1 |
RS232 IN | 1 |
RS232 OUT | 2 |
ISP IN | 1 |
IR IN | 1 |
CODING BUTTON | 1 |
AC IN | AC100-240V |
Color System Support | PAL/NTSC/SECAM |
Control Type | IR Remote &Software Control |
Menu Language | English/Chinese(Multiple Language can be customized) |
Description
♦ Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
