Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: ST-43
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Life Time: |
>60,000 Hours |
Brand: |
Smart Display |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Customized Service: |
Yes |
Life Time: |
>60,000 Hours |
Brand: |
Smart Display |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Customized Service: |
Yes |

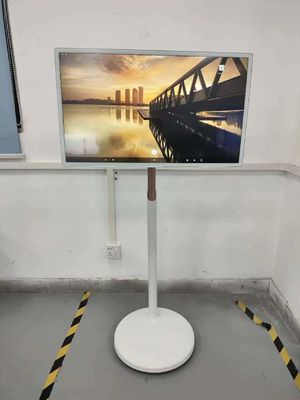

Smart rotate lg screen 24 inch 32 inch incell touch display IPS movable android 12 stand by me tv
| Name | 32-inch heart screen | |
| Display parameters | Effective display area | 698.4(H) x 392.85 (V) (mm) |
| Display scale | 16:9 | |
| Brightness | 350cd/㎡ | |
| Contrast | 1200:1 | |
| Color | 8bits-true (16.7M) | |
| Backlight type | ELED | |
| Maximum viewing Angle | 178 ° | |
| Resolution | 1920 * 1080 | |
| Machine parameters | Input port | USB2.0*2,, T-Flash*1, RJ45 |
| Output port | HDMI*1 | |
| Sound output power | 2X5W | |
| WIFI | 2.4 G, | |
| Bluetooth | Bluetooth 4.0 support | |
| Overall power consumption | ≤45W | |
| Standby power consumption | 0.5 W or less | |
| Whole life | 30000 | |
| Input power | 24V/5A (battery charge) | |
| Overall dimensions | 736.11 (length) x 430.51 (height) x 54.97 (thickness) mm | |
| 1415.9 (L) x 736.11 (H) x 428 (thick) mm (with stand) | ||
| Package dimensions | 876 x 177.8 x 550 MM | |
| Net weight | 7.5 KG | |
| Gross weight | 10.0 KG | |
| Working environment | Working temperature: 0℃ ~ 50℃; Humidity: 10%RH ~ 80%RH; | |
| Storage environment | Storage temperature: -20℃ ~ 60℃; Storage humidity: 10%RH ~ 90%RH; | |
| Android system parameters | CPU | RK3566, quad-core, up to 1.8GHz |
| GPU | The Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1 | |
| RAM | 2G | |
| FLASH | 16G | |
| Android version | Android 11.0 | |
| OSD language | Chinese, English | |
| Mobile display rack parameters | Height adjustment | 170mm |
| Angle | Rotation: clockwise 90°/ counter-clockwise 90°, tilt: up 22°/ down 22° | |
| Casters | 1 "cardan wheel *5 | |
| Net weight | 3.25 KG | |
| Gross weight | 5.55 KG | |
| Rod package dimensions | 1320*284*154 MM | |
| Net weight | 8.45 KG | |
| Gross weight | 9.85 KG | |
| Chassis package dimensions | 504*129*504 MM | |
| Switch/indicator light | Red/Blue dual color, charging blue flashing, full blue light, red about half charge, low charge red flashing | |
| Battery parameters | Cell type | Lithium iron phosphate battery |
| Rated capacity | 230Wh | |
| Nominal voltage | 19.2 V | |
| Charging port | DC plug 2.5mm | |
| Maximum charging current | 5A | |
| Size | 220mm*170mm*30mm(Max) | |
| Weight | 2.5 kg | |
| Capacitance parameters | Glass material | AC anti-glare tempered glass |
| Multi-touch | Maximum touch points supported: ≦10 points | |
| Number of Channels | 95 channels | |
| Scanning frequency | Changes in scanning rate and measurement capacitance: ≥100KHZ | |
| Wake up response time ms | Time from finger touch to response: ≦15ms | |
| Touch accuracy mm | Deviation between the real position and the position reflected by the touch: ±2.0mm | |
| Linearity | Deviation from straight line touch: ±2.0mm | |
| Touch separation mm | Distance of two points that can be distinguished: 15mm | |
| Sensitivity | The sensitivity of the touch screen (click≤φ6mm, slip≤φ6mm: uniformly≤1.5mm) | |
| Temperature range | Operating temperature: -10℃~60℃ | |
| Working voltage | DC5V | |
| Operating power consumption | ≥1W | |
| Accessories | Remote control | Quantity: 1 |
| AAA batteries | Quantity: 1 pair | |
| Power adapter | Quantity: 24V/5A | |
| Capacitive stylus | Quantity: 1 | |
| Mobile display rack | Quantity: 1 set | |
| Featured Features | 1, the shape is simple, the main body adopts geometric design, 2, fully fit capacitor process, compatible with Incell and Oncell, multi-channel capacitor touch, smooth touch writing. 3, built-in large capacity battery, normal working time 5 hours (actual use time will be affected by the temperature and the brightness/sound of the machine), 4, charging breathing light display, power status indicator light display 5, mobile display rack bionic nature tree design 6, support multi-angle display viewing. |
|
