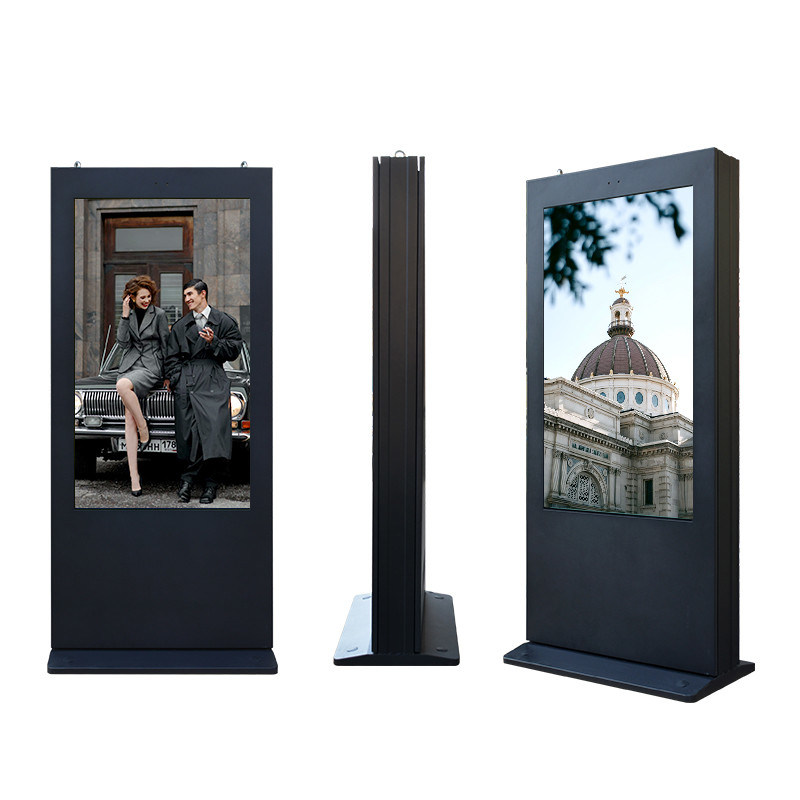

55 Inch 65 Inch 75 Inch High Brightness Waterproof Outdoor Digital Signage Totem
Waterproof Outdoor Digital Signage High Brightness 240V 55 Inch 65 Inch 75 Inch
Specification
| Name | 55''outdoor floor digital signage | ||
| Panel parameter | Size | 55inch LED screen | |
| Display area | 1209.6×680.4 mm | ||
| Resolution | 1920*1080 | ||
| Brightness | 2000cd/m*2 | ||
| Color | 16.7M | ||
| Aspect ratio | 16:9 | ||
| Response time | 6.5MS | ||
| Contrast | 4000:1 | ||
| View angle | 178°/168°(H/V) | ||
| CPU | HD video and audio decoder chip | ||
| Mainboard | 40A | ||
| System Ram | DDR3 1Gbyte | ||
| System Rom | NAND FLASH 8Gbyte | ||
| IO connectors | 1 x USB host,1 x USB OTG,1 x serial Port,1 x I2C Interface,1 x LVDS Interface ,1 x stereo Audio Out | ||
| Storage | USB/SD card | ||
| Decoding resolution | MAX 1080P | ||
| Audio | built-in HD audio 8(Realtek ALC888) audio system | ||
| Video format | MPEG1,MPEG2,MPEG4,H.264,WMV | ||
| Audio format | MP3 | ||
| Photo format | JPEG,BMP,PNG | ||
| wifi | yes | ||
| OS | Android 4.2.2 | ||
| OSD Language | Chinese, English | ||
| Play Mode | Supports loop playback, timed playback and other multi-player mode | ||
| Environment | Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:20%-80% RH at 40°C, |
||
| System Power Supply | AC 110V~240V,50/60HZ | ||
| Power cord | Yes | ||
| Case | Cold rolled steel with powder coating+ toughened glass surface | ||
Features
| 1 .55-75 inch high brightness LCD Module, 1500-3000nits brightness, 1920x1080 resolution, 4000:1 contrast with LED backlight, Sunlight viewable; | |||
| 2 . Patented LED backlight modular components + constant current source drive components; | |||
| 3 . Patented cooling structure combination of high-quality fan assembly; | |||
| 4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional); | |||
| 5 . Automatic ambient light adjustment control (extended life and energy efficiency); | |||
| 6 . Built-in power adapter combination AC220V/DC; | |||
| 7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system; | |||
| 8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot; | |||
| 9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent | |||
| 10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃; | |||
| 11 . Frame(fit with single side screen) can be customized exactly same as client provided; | |||
