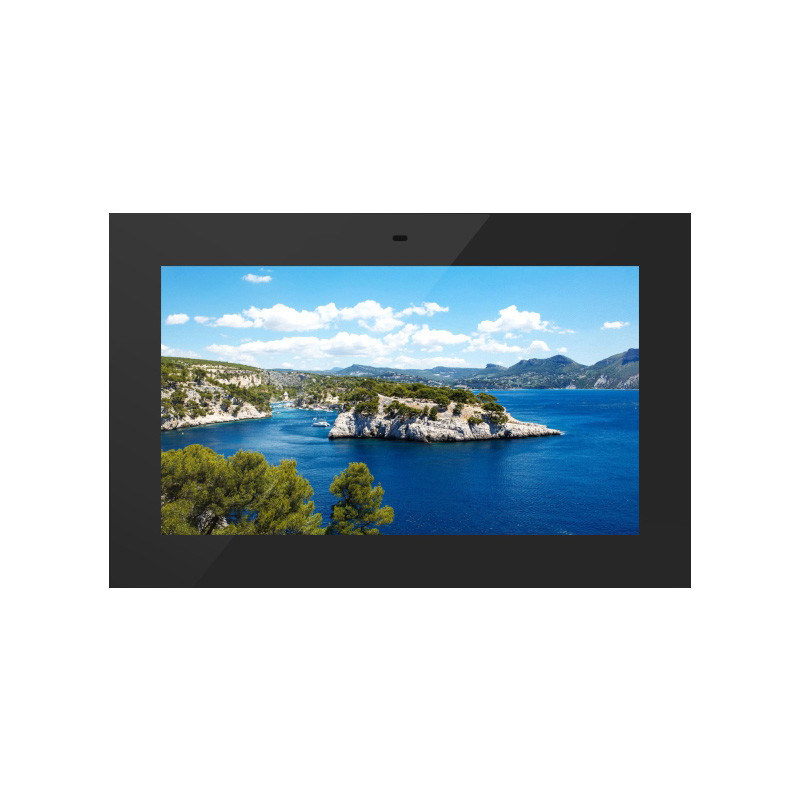

Wall mounted outdoor 55inch 2000nits waterproof outdoor Digital Signage
2000nits Outdoor Digital Signage 55 inch Black Wall Mounted Kiosk outdoor lcd digital signage
Specification
| Panel Specification: outdoor signage | |
| Model Number | WW-SN-5512 |
| Panel Size | 55inch |
| Display area | 1209.8*680.4MM |
| Brand | Samsung/Auo A grade new panel |
| Resolution | 1920*1080 |
| Display Color | 16.7M |
| Pixel Pitch | 0.4835(H)*0.4835(V)mm |
| Brightness | 360cd/m*2 |
| Back Light | LED |
| Aspect ratio | 16:09 |
| Response time | 6.5MS |
| Contrast | 4000:1 |
| View angle | 178°/178°(H/V) |
| Life time | >60,000 hours |
| Video Specification | |
| Resolution | Max 1080P HD |
| Video Format | RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4 etc |
| Audio Format | MP3, WMA, APE, Flac etc |
| Picture Format | JPG, BMP, GIF etc |
| Input Function | |
| Multi touch(Infrared/Resistance/Capacitive) | Support |
| Remote control | Support |
| USB Mouse/Keyboard | Support |
| Output Function | |
| Horizontal/Vertical Showing Mode | Support |
| 1080P HD Dot to Dot oIutput | Support |
| LVDS/HDMI/VGA/AV | Support |
| Advantages | |
| Time Switch | Turn on/off automatically |
| Rolled Text | Showing on the bottom of the panel |
| Calendar | Support |
| Weather | Support |
| Logo | Support |
| Splicing Screen | Support Video/photos/rolled text/weather/Calendar/logo showing in the same screen at the same time |
| Android Board Specification | |
| Processer | Cortex-A8 1.5GHZ |
| Mainboard | Allwinner A20 |
| RAM | 1GB |
| Flash Memory | 4GB |
| HDMI | 1 |
| USB | 1 |
| Network | Ethernet RJ45, 10M/100M |
| Audio | built-in HD audio 8(Realtek ALC888) audio system |
| Operating System | Android 4.2 System |
| WiFi model | Support 802.11N Home using Version |
| OSD Language | |
| Menu Language | Chinese, English, Spanish, Russian, German, French, Arabic, etc. |
| Environment | |
| Working Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Working Humidity | 20%-80% |
| Storage humidity | 5%~95% |
| Power | |
| Power Supply | DC +12V |
| Maximum power consumption | 4.5W |
| Standby power consumption | 1W |
| Appearance | |
| Dimension | 1812(H)mm*834(W)mm*520(D)mm |
| NetWeight | 90kgs/pcs |
| Color | White, Black, Silver, Golden, Customize based on Pantone number |
| Material | Cold Rolled Steel, Aluminum, Stainless Steel |
| Installation | Floor standing or mounted on the Floor |
| Certificcates | CE/FCC/ROHS/C-TICK/BV/SASO |
| Accessories | CD, Screws, Keys, Power Cable, Warranty Card, User Manual |
| Package | |
Features
| 1 .55-75 inch high brightness LCD Module, 1500-3000nits brightness, 1920x1080 resolution, 4000:1 contrast with LED backlight, Sunlight viewable; | |||
| 2 . Patented LED backlight modular components + constant current source drive components; | |||
| 3 . Patented cooling structure combination of high-quality fan assembly; | |||
| 4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional); | |||
| 5 . Automatic ambient light adjustment control (extended life and energy efficiency); | |||
| 6 . Built-in power adapter combination AC220V/DC; | |||
| 7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system; | |||
| 8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot; | |||
| 9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent | |||
| 10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃; | |||
| 11 . Frame(fit with single side screen) can be customized exactly same as client provided; | |||
1. Q: Are you a plant or trading company?
A:We are a lcd advertising player,digital signage,lcd video wall plant, lcd touch screen. We integrate R&D team,
manufacture,quality control team, sale and after-sale service.
2. Q: Where is your plant located? How can I visit there?
A:Our factory is located in Shenzhen, GuangDong Province, China. About 15 minutes by car from Shenzhen airport
we pick you up there. All our clients from home or abroad are warmly welcome to visit us!
3. Q: For the first order, can we place a advertising player, lcd touch screen kiosk sample order?
A: Yes,of course, when you have our lcd digital signgae, lcd advertising player, lcd video wall samples in hands,
you will know more if it is worth to move forward!
4. Q: About the quality control, how will our plant guarantee it?
A:The quality is always our priority.We have Total Quality Management System to control quality. We have our
own professional engineer with many years’ experience. Our factory has gained FCC, CE, RoHS etc for our lcd
video wall, digital signage, lcd advertising player
