Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: ST-43
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Customized Service: |
Yes |
Brand: |
Smart Display |
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Customized Service: |
Yes |
Brand: |
Smart Display |

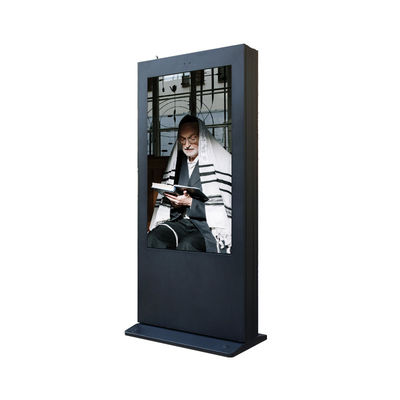

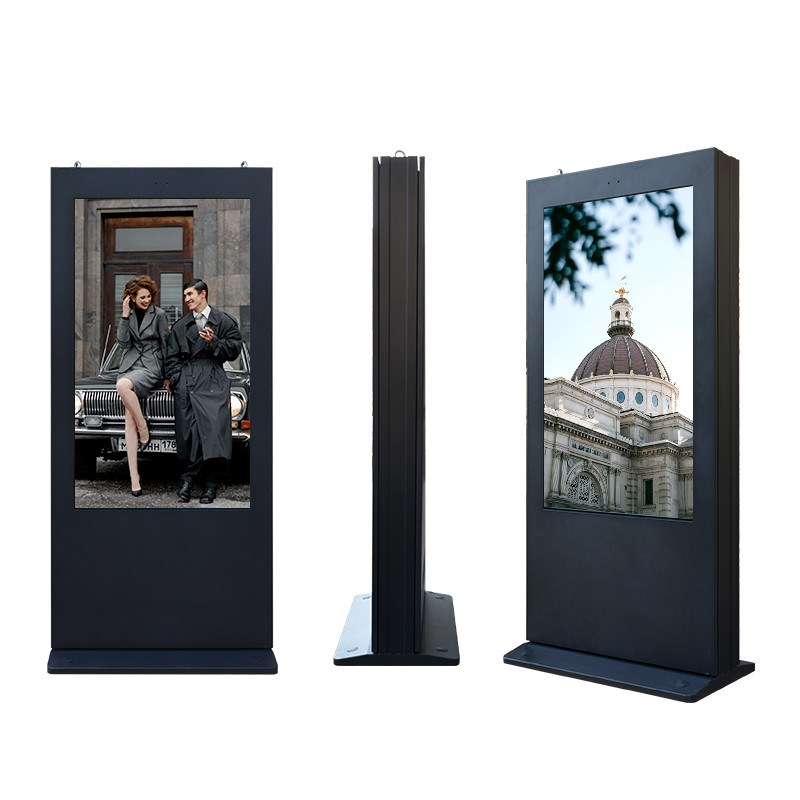

55 Inch 65 Inch 75 Inch High Brightness Waterproof Outdoor Digital Signage Totem
65 Inch LED Screen Outdoor Digital Signage 4K High Brightness 89 Viewing Angle
Specification
| Name | 55''outdoor floor digital signage | ||
| Panel parameter | Size | 55inch LED screen | |
| Display area | 1209.6×680.4 mm | ||
| Resolution | 1920*1080 | ||
| Brightness | 2000cd/m*2 | ||
| Color | 16.7M | ||
| Aspect ratio | 16:9 | ||
| Response time | 6.5MS | ||
| Contrast | 4000:1 | ||
| View angle | 178°/168°(H/V) | ||
| CPU | HD video and audio decoder chip | ||
| Mainboard | 40A | ||
| System Ram | DDR3 1Gbyte | ||
| System Rom | NAND FLASH 8Gbyte | ||
| IO connectors | 1 x USB host,1 x USB OTG,1 x serial Port,1 x I2C Interface,1 x LVDS Interface ,1 x stereo Audio Out | ||
| Storage | USB/SD card | ||
| Decoding resolution | MAX 1080P | ||
| Audio | built-in HD audio 8(Realtek ALC888) audio system | ||
| Video format | MPEG1,MPEG2,MPEG4,H.264,WMV | ||
| Audio format | MP3 | ||
| Photo format | JPEG,BMP,PNG | ||
| wifi | yes | ||
| OS | Android 4.2.2 | ||
| OSD Language | Chinese, English | ||
| Play Mode | Supports loop playback, timed playback and other multi-player mode | ||
| Environment | Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:20%-80% RH at 40°C, |
||
| System Power Supply | AC 110V~240V,50/60HZ | ||
| Power cord | Yes | ||
| Case | Cold rolled steel with powder coating+ toughened glass surface | ||
Features
| 1 .55-75 inch high brightness LCD Module, 1500-3000nits brightness, 1920x1080 resolution, 4000:1 contrast with LED backlight, Sunlight viewable; | |||
| 2 . Patented LED backlight modular components + constant current source drive components; | |||
| 3 . Patented cooling structure combination of high-quality fan assembly; | |||
| 4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional); | |||
| 5 . Automatic ambient light adjustment control (extended life and energy efficiency); | |||
| 6 . Built-in power adapter combination AC220V/DC; | |||
| 7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system; | |||
| 8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot; | |||
| 9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent | |||
| 10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -20℃ - 50℃; | |||
| 11 . Frame(fit with single side screen) can be customized exactly same as client provided; | |||
1. Q: Are you a plant or trading company?
A:We are a lcd advertising player,digital signage,lcd video wall plant, lcd touch screen. We integrate R&D team,
manufacture,quality control team, sale and after-sale service.
2. Q: Where is your plant located? How can I visit there?
A:Our factory is located in Shenzhen, GuangDong Province, China. About 15 minutes by car from Shenzhen airport
we pick you up there. All our clients from home or abroad are warmly welcome to visit us!
3. Q: For the first order, can we place a advertising player, lcd touch screen kiosk sample order?
A: Yes,of course, when you have our lcd digital signgae, lcd advertising player, lcd video wall samples in hands,
you will know more if it is worth to move forward!
4. Q: About the quality control, how will our plant guarantee it?
A:The quality is always our priority.We have Total Quality Management System to control quality. We have our
own professional engineer with many years’ experience. Our factory has gained FCC, CE, RoHS etc for our lcd
video wall, digital signage, lcd advertising player
