Product Details
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: SW-01
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Type: |
Video Wall |
Application: |
Indoor |
Panel Parameter: |
RGB Vertical Stripe |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Resolution: |
1920*1080 /4k |
Customized Service: |
Yes |
Brand: |
Smart Display |
Type: |
Video Wall |
Application: |
Indoor |
Panel Parameter: |
RGB Vertical Stripe |
Bezel: |
3.5mm |
Size: |
55inch |
Display Colors: |
8bit-16.7m |
Resolution: |
1920*1080 /4k |
Customized Service: |
Yes |
Brand: |
Smart Display |

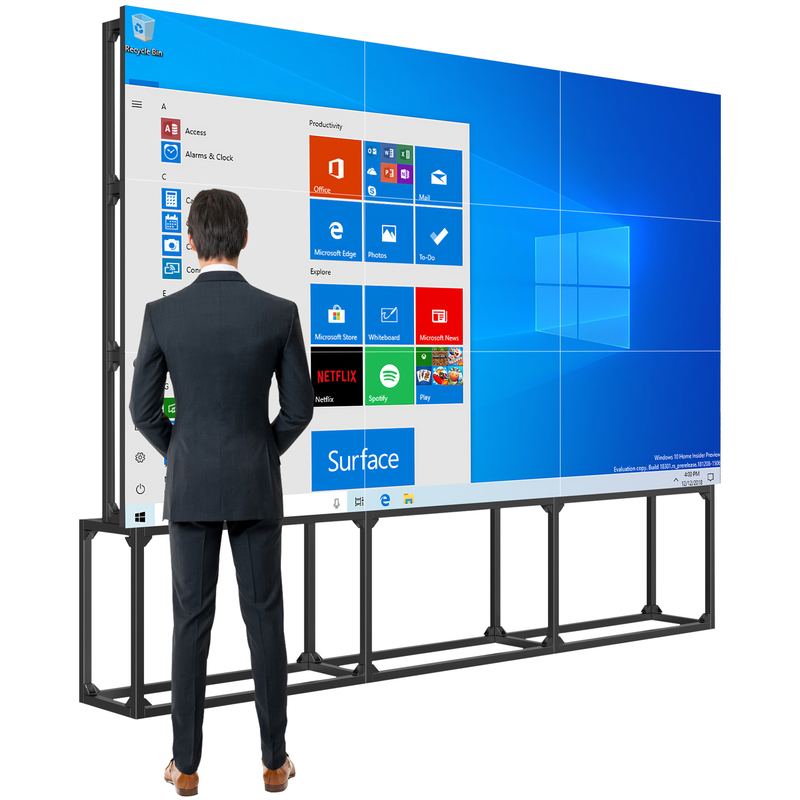

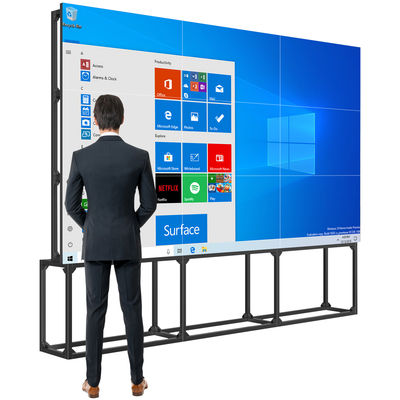

4k Controller Indoor Videowall 55 Inch 2x2 3x3 Mount Advertisement Display Splicing Screen
Specification
| Product size table | ||||||
| Panel size | Bilateral seam | Panel Length | Panel Width | Panel Thickness | Panel Brand | Model No. |
| 46inch | 1.7mm | 1020.02mm | 574.61mm | 120.54mm | Samsung | LTI460HN15 |
| 46inch | 3.5mm | 1021.98mm | 576.57mm | 121.7mm | Samsung | LTI460HN11 |
| 46inch | 5.5mm | 1023.98mm | 578.57mm | 133mm | Samsung | LTI460HN09 |
| 49inch | 1.8mm | 1077.58mm | 607.8mm | 113.7mm | LG | LD490DUN-TJB2 |
| 49inch | 3.5mm | 1077.58mm | 607.8mm | 113.7mm | LG | LD490DUN-THC4 |
| 55inch | 1.8mm | 1213.5mm | 684.3mm | 110mm | LG | LD550DUN-THB8 |
| 55inch | 3.5mm | 1213.5mm | 684.30mm | 110mm | Samsung | LTI550HN11 |
| Panel | Brand | S-series | L-series | B-series |
| Panel size | 46 55 65 inch optional | 49 55 inch optional | 46 49 55 inch optional | |
| Bezel | 1.7/3.5/5.5mm | 0.88/1.8/3.5mm | 0.99/3.5mm | |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | |
| Brightness | 500~700 cd/m² | 500~700 cd/m² | 500~700 cd/m² | |
| Constract ratio | 1200:1, 3500:1, 4000:1 | 1200:1, 1300:1, 1400:1 | 1300:1, 1400:1 | |
| Viewing angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | |
| Color | 16.7M , 72% (CIE1931) | 16.7M , 72% (CIE1931) | 16.7M , 72% (CIE1931) | |
| Backlit | WLED | WLED | WLED | |
| Frequency | 60Hz | 60Hz | 60Hz | |
| Signal interface | LVDS | LVDS | LVDS | |
| Repond time | 8ms | 8ms | 8ms | |
| Life spang | 60000 hours | 60000 hours | 60000 hours | |
| I/O | Interface | HD Interface, VGA in, DVI, BNC, Support Picture in Picture(PIP/POP/PAP) | ||
| Concatenation port | RS232-RJ45 in/out | |||
| Video | Color system | PAL/NTSC/Auto-Identify | ||
| Scene roaming | Support | |||
| Power | Power input | Build-in type, 100 ~ 240V AC, 50/60Hz | ||
| Power consumption | 180W (Max.); standby power lesss than 3w | |||
| Outlook | Shell material | Cold-rolled sheet, black | ||
| Screen position | Landscape, protrait optional | |||
| Unit demenssion | 1210.81(L)*681.52(W)*63.24+45(thickness)mm | |||
| Optional | Installation | Floor standing cabinet/bracket, and wall mounted bracket optional | ||
| Touch screen | IR touch screen optional | |||
| Splitter & matrix | 1ch in, 4/8/12/16ch out splitter optional; Matrix optional | |||
| Package | Unite Package | PE film + Foam corner protector + honeycomb box | ||
| Export Package | Export wooden box or wooden pallet | |||
| Accessories | HD cable, RJ45 cable, remote control*1, IR sensor*1 | |||
