High Definition Digital Image Processor 4K Indoor RJ45 Network Interface
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Video Wall Processor
Waranty: 1 Year
Interface: LAN*1*HDMl Out, VGA DVI Output USB, HDMI, VGA, AV
Color: Black
Application: Indoor
Signal: HDMI
Customized Service: Yes
Brand: Smart Display
High Light:

3840x2160 Digital Image Processor

,

RS232 Digital Image Processor

,

RJ45 Video Wall Processor

Basic Infomation
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Payment & Shipping Terms
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Product Description

High-definition digital image processor 4K

lProduct description

.1Product functions overview

High-definition digital image processor (HD processor) is a new device developed for the coexistence of analog signal and digital signal, as well as high-definition signal and standard definition signal. Analog input signal and digital input signal can be processed centrally and converted into uniform format output. Can be a variety of different formats of input signals for intuitive, simple, convenient switching.

HD processor adopts modular design, plugging card structure, supporting hot plug, can be any combination, easy to choose, for different use needs, the choice of capacity from 4x4 to 72x72.

.2Product Features

  1. Modular design, card type structure, which can be freely assembled according to the actual situation.
  2. Input signal support DVI, HDMI, VGA, HD-SDI, HDBaseT, 4K(DP or HDMI), Video, Fiber optics, Audio and IP stream decoding and other formats.
  3. Output signal supports DVI-I, HDMI, RJ45, Fiber optics, Audioand HDBaseT format.
  4. The maximum resolution of input is 1920*1080 or 4K @30Hz(while input signal is 4K), and output is 1920*1200. and it is compatible with other resolutions such as 720P signal downward.
  5. Signal processing and switching are all digital;Support signal format conversion, support frequency doubling line conversion function.
  6. HD processor video input can achieve 4 segmentation screen display.
  7. Support input signal state monitoring, real-time monitoring and display the current input channels are effective signal access.
  8. With power off memory function with power off site protection, forced air cooling, to ensure the stability of the system.
  9. Controlling software canremotely controlvia Ethernet and RS232, and it supports multi-channel switching, address setting and other functions.

.3Hardware Function Description

.3.1Input module

1.VGA (RGB) input

Connector: 15-pin D-SUB (DB15/DE-15F) (female)

The resolution below 1920x1080 is adaptive, and the refresh frequency is 60Hz;

2.DVI - D input

Connector:DVI: 24+5 pins /DVI-I/ female, (receiving DVI-D signal only)

The resolution below 1920x1080 is adaptive, and the refresh frequency is 60Hz;

3.Analog-Video Input

Joint composite video: BNC (female head);

Type PAL format;

4.SDI video input

Support protocols SD-SDI(SMPTE 259M), HD-SDI(SMPTE 292M);3G-SDI

Connector:BNC (female head);

5.HDMI signal input

The resolution below 1920x1080 is adaptive;

Connector: HDMI Type A, HDCP 1.3.

6.HDBASET signal input

Connector:RJ45 network interface, line length support 70 meters (100 meters), support CAT5E, CAT6;

The resolution below 1920x1080 is adaptive, and the refresh frequency is 60Hz;

7.4K signal input

Connector:HDMI Type A, HDMI 1.4 / DVI 1.0;

Resolution: 3840x2160@30Hz, adaptive below 1920x1080, refresh frequency: 60Hz;

8.IP stream decoded signal input

Connector:RJ45 network interface

Protocol h.264/h.265 RTSP/RTP

Resolution 4 ways 1080P@30

9.Captioning signal input

2 scrolling subtitlesavailable

10.Audio signal input

Connector:4Audio ports, 3.5-millimeter headphone jack

.3.2Output module

1.DVI/VGA output

Connector:24+5 pin DVI-I (female head, VGA, RGB);

The resolution below 1920x1080 can be set, and the refresh frequency is 60Hz;

2.Twisted pair output

Connector:RJ45 network interface, support CAT5E, CAT6, support 15~50 meters;

The resolution below 1920x1080 can be set, and the refresh frequency is 60Hz;

3.HDMI output

Connector:HDMI Type A (female head);

The resolution below 1920x1080 can be set, and the refresh frequency is 60Hz;

4.SDI output

Connector:BNC (female head), support SD/HD-SDI/3G SDI;

The resolution below 1920x1080 can be set, and the refresh frequency is 60Hz;

5.The cable will output

Connector:RJ45 network interface, line length support 70 meters (100 meters), support CAT5E, CAT6;

The resolution below 1920x1080 is adaptive, and the refresh frequency is 60Hz;

6.Audio output

Connector:4Audio ports, 3.5-millimeter headphone jack

.4Software Function Description

HD processor software(HDP Software)the Windows software that controls the equipment. This software realizes the control operation and automatic monitoring function of the control image processor. Through this software, the user can realize the control function of the image processor control system, at the same time can realize the intelligent monitoring function of the related peripheral equipment, can realize the automatic switch system mode function.

.4.1Main functional features

1.Device search, connection, and configuration

Configure the connection, search the HD Processor equipment, obtain the device information and configurationof equipment and other functions.

2.Signal switching and editing

With the signals switching and editing function, the position and size of the display video can be controlled and edited on the output screens. At the same time, the layer can be edited, and some operations such as deleting and placing are provided.

3.Scenes management and Polling

Saving and managing the scenes, including saving the scene file, opening the scene file, and scene polling.

.4.2System requirements

A Windows PC with 1 GHz or higher processor.

250 MB free storage space.

1024 MB or more of RAM as required by your operating system.

1024x768 graphics capability,16-bit or higher colors.

Network (Ethernet) interface.

CAT5 cable or an existing Ethernet network.



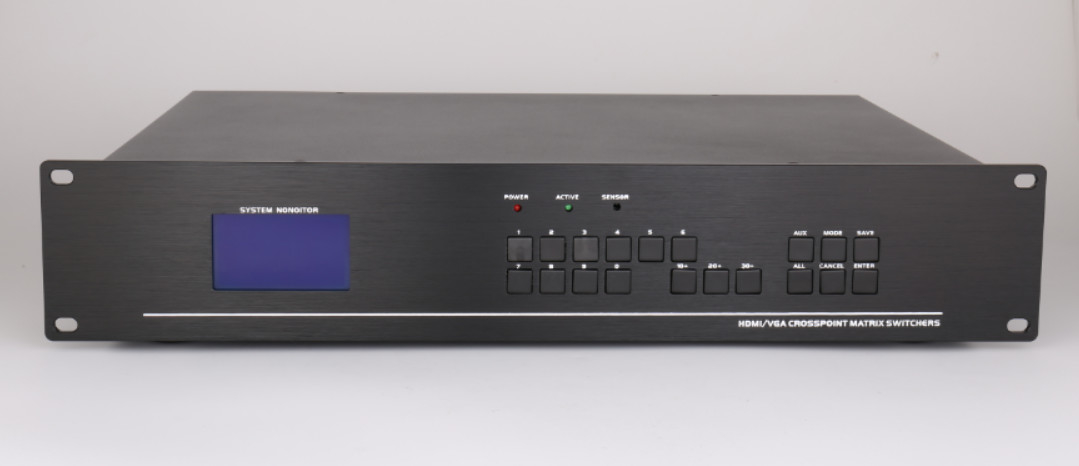

High Definition Digital Image Processor 4K Indoor RJ45 Network Interface 0



1. Adopt High-Strength Aluminium Alloy, Hardened Coat Painting Metal, Anti-Vanal High Tempered Glass,antistatic,preventing magnetic strong interference.
2. With tempered glass as protection layer against the surface of LCD screen.
3. Adopt newest LCD screen,with high contrast ration,high brightness,last longer and work better.
4. Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX.
5. Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.
