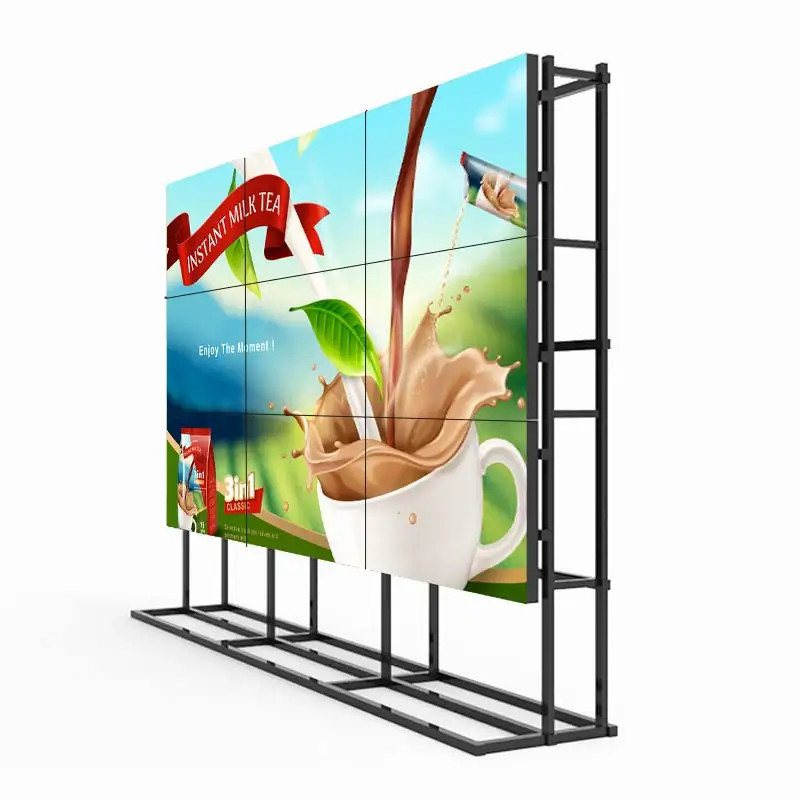

4X4 4K LCD Video Controller Flexible Led Video Wall 46 Inch

Product Details

Place of Origin: China

Brand Name: Smart Display

Certification: CE,FCC, Rohs. CB

Model Number: SW-01

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Outer wooden box, middle carton, inner PE cotton

Delivery Time: 7-25

Payment Terms: TT

Supply Ability: 5000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    CE Flexible Led Video Wall, 4X4 Flexible Led Video Wall, 46Inch LCD Video Wall Display


Application:	Indoor	Panel Parameter:	RGB Vertical Stripe
Bezel:	3.5mm	Size:	55inch
Display Colors:	8bit-16.7m	Resolution:	1920*1080 /4k
Customized Service:	Yes	Brand:	Smart Display

Application:	Indoor
Panel Parameter:	RGB Vertical Stripe
Bezel:	3.5mm
Size:	55inch
Display Colors:	8bit-16.7m
Resolution:	1920*1080 /4k
Customized Service:	Yes
Brand:	Smart Display

Description

4X4 4K LCD Video Controller Flexible Led Video Wall 46 Inch

Cheap 46 Inch 4X4 4K LCD Vide Controller Flexible Led Video Wall

Basic Info.

Model NO.

Video Wall

Interface Type

HDMI

Remote Control

With Remote Control

Windows/Android

Customized

Viewing Angle

89/89/89/89 (Minutes) (Cr>=10)

Resolution

1920 (RGB) X 1080 [FHD]

Display Size

1018.08 (Horizontal) X 572.67 (Vertical) mm

Brightness (CD / M2)

500 (Typ.)

Best Angle

Full View

Pitch

0.630mm (Height) X 0.630mm (Width)

Number of Colors

16.7m / 1.07b, 95% [Cie1931]

Screen Weight

9.4kgs (Typ./Max.)

Refresh Rate

120Hz

Screen Type

LCD Module, a-Si TFT-LCD

Transport Package

Carton Box, Wooden Frame / Case, Flight Case

Specification

46 inch screen

Trademark

Smart Display

Origin

Guangdong Shenzhen

HS Code

8521909090

Production Capacity

5000 Piece/Pieces Per Month

Specification

Product Size Table
Panel size	Bilateral seam	Panel Length	Panel Width	Panel Thickness	Panel Brand	Model No.
46inch	1.7mm	1020.02mm	574.61mm	120.54mm	Samsung	LTI460HN15
46inch	3.5mm	1021.98mm	576.57mm	121.7mm	Samsung	LTI460HN11
46inch	5.5mm	1023.98mm	578.57mm	133mm	Samsung	LTI460HN09
49inch	1.8mm	1077.58mm	607.8mm	113.7mm	LG	LD490DUN-TJB2
49inch	3.5mm	1077.58mm	607.8mm	113.7mm	LG	LD490DUN-THC4
55inch	1.8mm	1213.5mm	684.3mm	110mm	LG	LD550DUN-THB8
55inch	3.5mm	1213.5mm	684.30mm	110mm	Samsung	LTI550HN11

Features

1.Full hardware architecture, professional splicing chip design without CPU and operating system

2.Multi-line parallel processing with powerful processing functions;

3.Integrated multiple video signal sources

4.RS232 serial port remote control; support two RS232 loop-outs

5.Can open the underlying communication protocol, which is convenient for users to flexibly adopt third-party central control, system or self-programmed software to construct a large screen engineering system

6.Embedded firmware intelligent upgrade system.

7.Narrow border full metal frame design

8.Fully silent industrial fan with automatic temperature switch

9.With 3D noise reduction, 3D filtering, 3D deinterlacing

10.Comes with a large screen splicing piece, a healthy splicing, easy to use

11.With energy saving, environmental protection, no radiation, support 7 * 24 hours of uninterrupted work, adapt to a variety of working environments that need to be turned on for a long time

12.Uniform brightness, stable image, no flicker, no distortion

13.Applicable to: commercial institutions, large shopping malls, specialty stores, franchise stores, hypermarkets, star hotels, restaurants, travel agencies, drug stores, etc.
