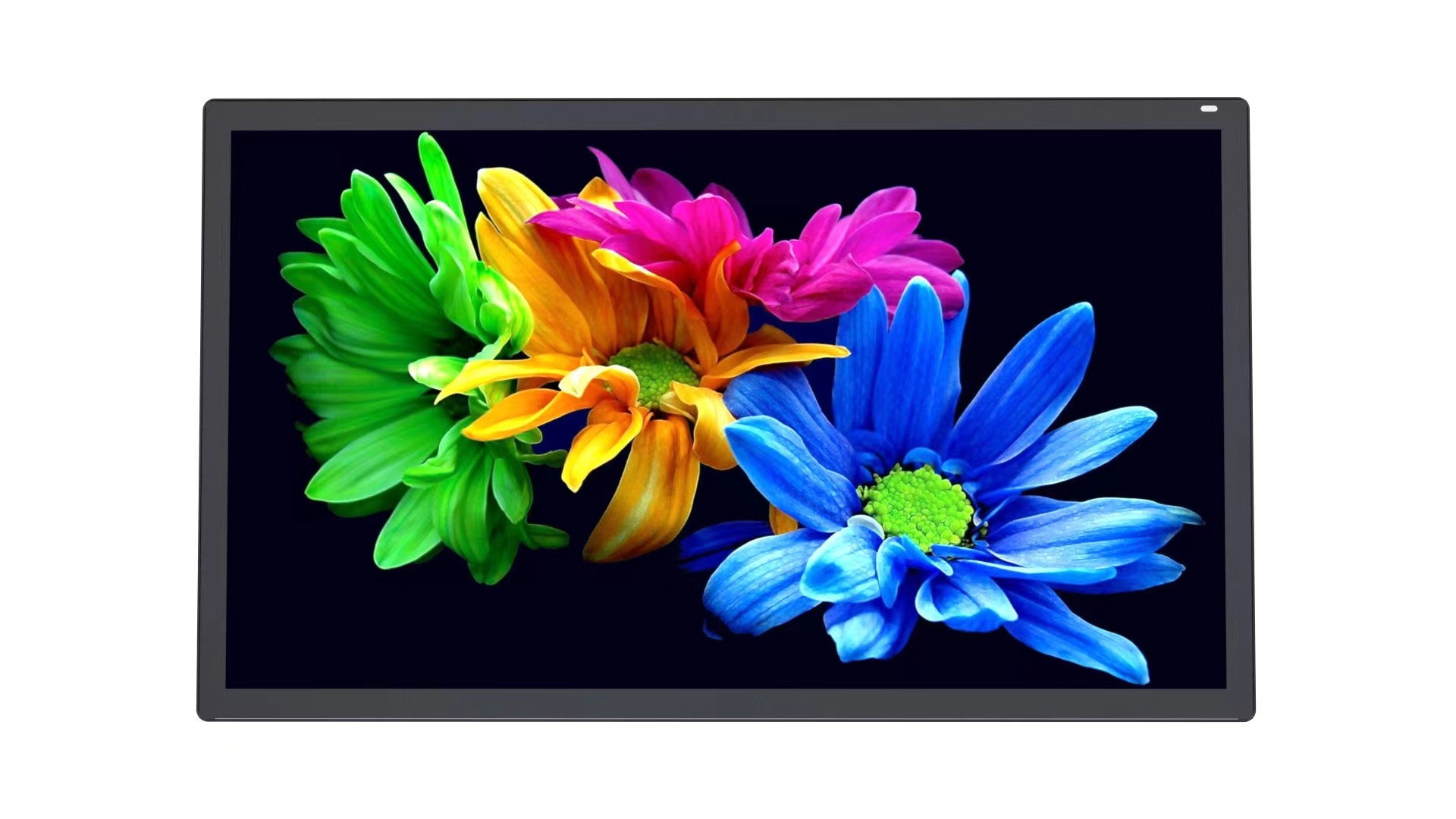

Original industrial ultra-thin high-temperature resistant IPS commercial screen

Original industrial ultra-thin high-temperature resistant IPS commercial screen
Features Gallery Product Description Request A Quote
Type: Wall Mounted
Brand: Smart Display
CPU: I3 I5 I7
Mainboard: H81
Ip65: Yes
Customized Service: Yes
LOGO Print: Yes
Basic Infomation
Place of Origin: China
Brand Name: Smart Display
Certification: CE,FCC, Rohs. CB
Model Number: ST-43
Payment & Shipping Terms
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 7-25
Payment Terms: TT
Supply Ability: 5000pcs/month
Product Description

Wall mounted outdoor 55inch 2000nits waterproof outdoor Digital Signage

2. Product technical standards
1. Outdoor LCD advertising machine - shell part
According to the GB4208-93 standard of enclosure protection level, the protection level of the integrated chassis and constant temperature system used will reach the IP65 standard for all outdoor equipment: 1) Anti-theft: The door lock is a three-level protection, the machine screw is hidden, and there are no exposed removable screws. ;
2) Anti-corrosion of the box: the shell is designed with high-strength galvanized steel + outdoor powder surface treatment, the average thickness of the plate is 1.5mm, which is beautiful and strong; the surface layer treatment of the steel plate meets the GB/T9286 test technology;
3) The design strength of the overall equipment has reached the design to resist the 12-level strong wind;
4) Explosion-proof glass: AR tempered glass, explosion-proof and anti-reflection (requires light transmittance greater than 97%, reflectivity less than 3%);
5) Waterproof design: The cabinet has good sealing performance. The door sealing strip uses a three-composite rubber strip with good elasticity and resistance to compression deformation, aging resistance, ozone, chemical action, and a wide operating temperature range (-40°C~+120°C).
6) The whole machine is completely in accordance with the requirements of IP65, multi-angle spray water does not enter the water
2. Outdoor LCD advertising machine - environmental control part
1) The whole machine adopts intelligent cooling, heating and strong exhaust air temperature control system, which can work normally when the outdoor ambient temperature is -20-50 degrees.
2) The heat dissipation requirements of the whole machine when the solar radiation and electrical components are heated, the display screen should not have abnormal phenomena such as high temperature blackening and fogging in front of the screen, and the temperature control system can automatically adjust the cooling or heating according to the internal temperature of the box
3) High-precision filtration system, when the wind speed is 533m/s, the filtration efficiency of 0.3μm particle size reaches 99.97%, which can keep the internal cleanliness of the machine above 99%
4) Precise temperature control system, the cooling fan adopts speed-adjusting fan, and the fan speed is adjusted according to the internal temperature value, so as to reduce the power consumption of the whole machine, reduce noise, and prolong the service life of the filter (the filter is not easy to block at low wind speed)

3,Outdoor LCD Advertising palyer-Electrical Safety

  1. Built-in leakage protector and wide voltage power supply module;





GB16917.1,IEC61009-1; CCC,CE,TUV certificates

Rated voltageAC230V
Rated current6A,10A,16A,20A,25A,32A
number of poles1P+N
Dividing ability4.5kA
Trip CharacteristicsType C trip curve
Mechanical life10000 times
Wiring capability10mm2 and below wire

1) Accurate temperature control combined with heat dissipation scheme, display 7*24 hours working brightness without attenuation
2) Time switch;
It can be preset with on/off control for 20 different times per day or week, as well as any loop timer function, keypad lock, daylight saving time and 12/24 hour conversion.
3) The internal electrical components have anti-electromagnetic interference shielding design;
4) The whole machine can work continuously for 7*24h;
4. Outdoor LCD advertising machine - high-brightness LCD module
1) Outdoor dedicated LCD screen with a brightness of more than 2000cd/m2;
2) High definition, LCD screen resolution 1920*1080
3) Using direct-type LED backlight, the brightness is more uniform, the life span reaches 100,000 hours, environmental protection and energy saving;
4) The dynamic contrast ratio is high, and the display screen is clearer;
5) Combined with the heat dissipation scheme to control the temperature accurately, the display screen can work 7*24 hours without attenuation.


Original industrial ultra-thin high-temperature resistant IPS commercial screen 0
3, Detail specification

High brightness screen
size43 inch
Display erea532(H)*943(V)
Aspect ratio16:9
brightness2000 cd/m²
Video portVGA HDMI
Brightness controlautomatic photosensitive system
Temperature control


Fans cooling

Work temperature-20°C to +55°C
Work humidity5% to 100%
powerAC 208-240V
Maximum power300W
Waterproof Shell
waterproof levelIP65
Package size (W*H*D)


Confirm according to actual shipping requirements

weightConfirm according to actual shipping requirements
Protect glass6mm Explosion-proof safety glass Transmittance greater than 97% Reflectivity less than 3%
softwareCloudy based digital signage software
mainboardRK3288 2+8
networkWIFI , LAN ,4G optional

4. Price


Original industrial ultra-thin high-temperature resistant IPS commercial screen 0


Original industrial ultra-thin high-temperature resistant IPS commercial screen 2
Original industrial ultra-thin high-temperature resistant IPS commercial screen 3Original industrial ultra-thin high-temperature resistant IPS commercial screen 4Original industrial ultra-thin high-temperature resistant IPS commercial screen 5
