Product Details
Place of Origin: CHINA
Brand Name: Smart Display
Certification: CE,FCC, ROHS ,CB
Model Number: ST-43
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: different price for different size
Packaging Details: carton+ wooden box/flight case
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 3000
OS: |
Android |
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Name: |
Touch Screen Kiosk |
Customized Service: |
Yes |
Brand: |
Smart Display |
OS: |
Android |
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Name: |
Touch Screen Kiosk |
Customized Service: |
Yes |
Brand: |
Smart Display |

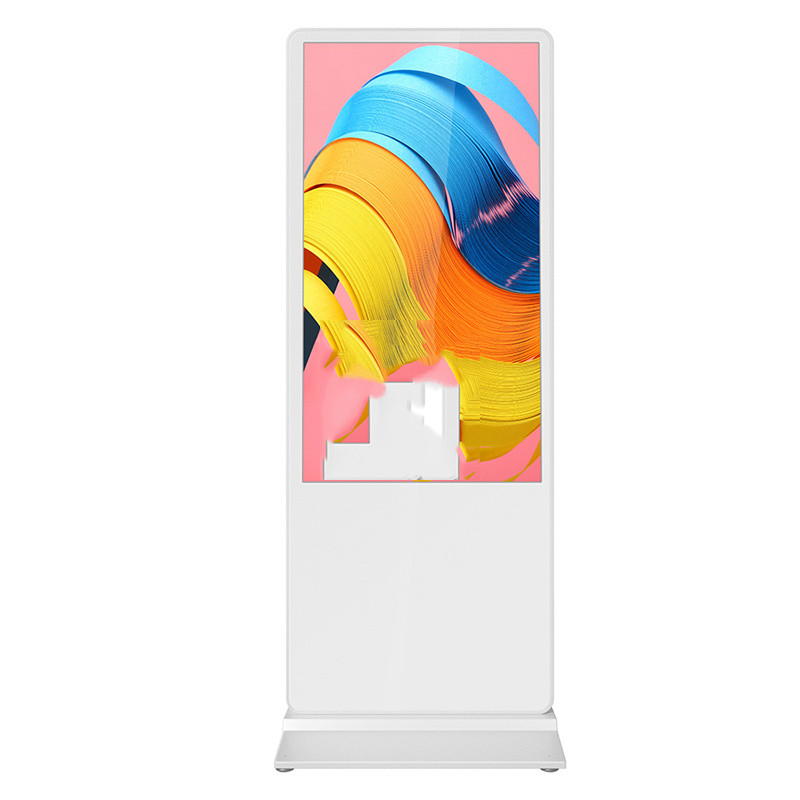

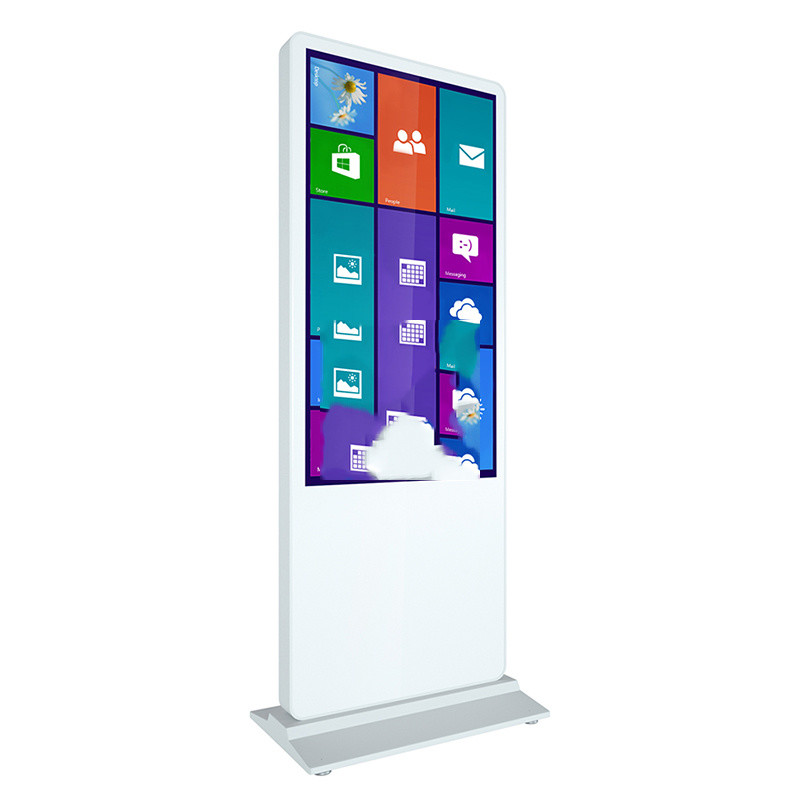

Android Floor Standing Touch Screen Digital Signage 55''touch screen display kiosk
Specifications
| Technical Parameter for LCD Panel | Panel Size | 55 inch real color LCD screen |
| Aspect Ratio | 16:9 | |
| Max. Resolution | 1920x 1080 | |
| Number of Color | 16.7M | |
| Brightness | 500cd/m2 | |
| Contrast Ratio | 1500:1 | |
| Responsive Time | 6ms | |
| Panel Life | above 50000 hours | |
| Storage Medium | Flash memory card | 2gb to 36gb for the capacity |
| Support Ad files | Video formats | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio formats | MP3 | |
| Photo formats | JPG | |
| OSD Language | English , Chinese , French , German , Italian , Spanish , Arabic | |
| Audio output | stereo L/R , 5Wx2 , 8Ω | |
| Power supply | AC 110V - 240V , 50/60HZ | |
| Storage Temperature | -7 to 65 Celsius degree | |
| Normal Working Temperature | -5 to 65 Celsius degree | |
Infrared touchscreen Panel Parameters:
| Touch Max Resolution | 4096×4096 |
| Transparency | > 90%, Up to 100% |
| Scanning Speed | >50Scans/S |
| Response Speed | <12ms |
| Touch Type | Horizontal Multi Dot Touch Screen (Vertical way is optional) |
| Touch precision | 0.625mm |
| Minimum Touch object | ≥5mm |
| Touch Intensity | Over 60,000,000 Single Point Touch |
| Operation System | DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX |
| perating Voltage | DC 5V ±5% |
| Power Supply | Keyboard Serial Interface |
| Power | <1W (Current<200mA) |
| Communication | RS-232 Interface Port, USB Port |
| Vandal-Proof | Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break |
| Temperature Operating | -41°C ~70°C Temperature Storage: -50°C ~85°C |
| Altitude | 3000m |
| Noise | None |
| Life Time | >10 Year |
Applications:
| Business Organizations | Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy. |
| Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops; Non-profit Organizations Telecommunications , post offices , hospital , schools; |
| Public Places | subway , airports , stations, gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers; Real Estate Property Apartments , villas , offices , commercial buildings , model rooms , property brokers; |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
