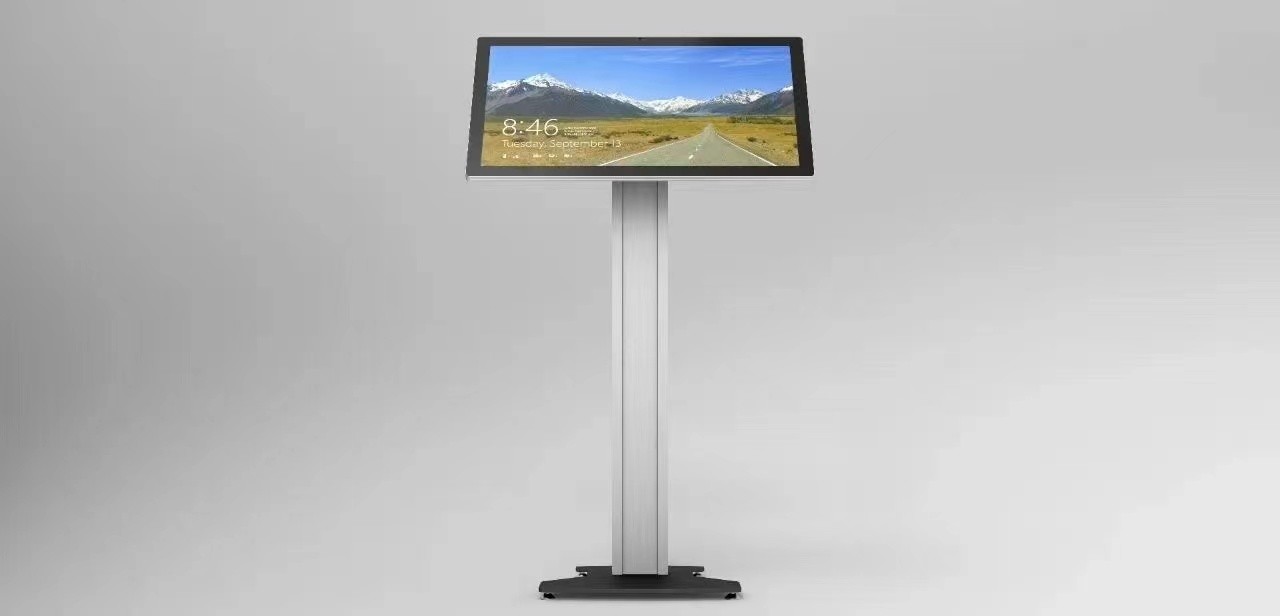

18inch 21.5inch Free Standing Touch Screen Kiosk 400CD/M

Product Details

Place of Origin: CHINA

Brand Name: Smart Display

Certification: CE,FCC, ROHS ,CB

Model Number: ST-43

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: different price for different size

Packaging Details: carton+ wooden box/flight case

Delivery Time: 5-7days

Payment Terms: T/T

Supply Ability: 3000

Get Best Price
Contact Now
Specifications
Highlight:

16.2M free standing touch screen kiosk

,

free standing kiosk 400CD/m

,

free standing kiosk 16ms

Type:
Touch Screen Kiosk
Brand:
Lg/Samsung/Auo A Grade New Panel
CPU:
I3 I5 I7
Touch Point:
10-20
Customized Service:
Yes
Brand:
Smart Display
Type:
Touch Screen Kiosk
Brand:
Lg/Samsung/Auo A Grade New Panel
CPU:
I3 I5 I7
Touch Point:
10-20
Customized Service:
Yes
Brand:
Smart Display
Description
18inch 21.5inch Free Standing Touch Screen Kiosk 400CD/M

18inch 21.5inch Free Standing Touch Screen Kiosk 400CD/M

18inch 21.5inch Free Standing Touch Screen Kiosk 400CD/M 0



Touch screen kiosk:

Technical Specifications

Touch screen kiosk
Model No WW-SNT-4217
LCD Display TFT LCD 42
Resolution 1920*1080
Contrast Ratio 3000:1
Color Resolution 16.2M
Brightness 400CD/m
Touch Technology Anti-Dust SAW Touch Screen Kit
Resolution 4096 x 4096
Glass thickness 4mm
Deviation of Error 2mm
Light Transmission 90%~92%
Response Time Less than 16ms
Touch Activation Force Less than 100g(adjust allowed)
Durability Scratch-free; More than 50,000,000 touches in one location without failure.
Surface Hardness Mohshardness rating of 7
Controller Interface USB and RS232
PC Specification Mini PC
CPU INTEL G630 Duo core 2.7GHZ
RAM DDR3,2GB
HDD 500GB 2.5"
Graphics Inter NM10Express
Chipset H61
Ports 4 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI,HDMI
Power Consumption 30 W
Operating System Windows 7 32bit-----optional
Optional Components
Wireless 802.11 b/g/n Wi-Fi and antenna
Thermo printer 80MM priner SID3250K
IC card sensor 1443A/1443B
Physical Specification
Kiosk shell material 1.5mm cold rolled steel+Acrylic cover
Color Silver /Black/White/personalized colors.
Wall mounted support With wall mounted Support
Fan 2 x 12V fans
Audio | Speakers 2 x 10W Speakers, 1 x 30W Amplifier
Ports | Slots Power input | Power switch | PC switch | USB | LAN
Cables Standard power cable
Power Supply International 110240 AC power
Operating Temp | Humidity Temperature:+5°C ~ +50°C | Humidity:0% ~ 80%
Weight & Dimension 75KG, 1104*544*115(H*W*D)
Packing Method Export wooden box+export carton box+4cm foamy.
Packing Weight & Dimension 110kg, 1204 x 644x 215mm(H*W*D) in wooden box
Customize Options
Multi-options Shell design Personalized colors, finish, branding & advertising
Screen size From 18.5" to 65"
PC components(Optional)

CPU :IntelD525 Due core 1.8GHZ/G620/I3/I5/I7,

Hard disk:500GD HDD,1TB HDD or SSD.

RAM: DDR3 2GB/4GB/8GB/16GB,etc.

Graphics: optional

Other Kiosk Components
Wireless Network 3G/GPRS modem, Bluetooth, GPS receiver
Printers 58mm, 80mm, ticket printers
Input Keyboards, Touch pads, Trackballs
Card Devices Magnetic / IC / RFID devices, Multi-card reader
Payment Devices Debit / Credit Card Payment devices, Bill & Coin devices
Scanners Barcode & document scanners
Authentication Biometric devices & signature pads
Power UPS
Other DVD RW, Intrusion Alarm, Proximity Sensor
Attention Points
Comments Specifications are subject to change
Please contact a sales for further information

Applications for 43 inch 49inch 55inch lcd touch screen kiosk interactive touch screen kiosk totem for shopping mall directory



Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.



Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;



Non-profit Organizations:Telecommunications, post offices, hospital, schools;



Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
