Product Details
Place of Origin: CHINA
Brand Name: Smart Display
Certification: CE,FCC, ROHS ,CB
Model Number: ST-43
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: different price for different size
Packaging Details: carton+ wooden box/flight case
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 3000
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Customized Service: |
Yes |
Brand: |
Smart Display |
Life Time: |
>60,000 Hours |
Brand: |
Lg/Samsung/Auo A Grade New Panel |
CPU: |
I3 I5 I7 |
Mainboard: |
H81 |
Customized Service: |
Yes |
Brand: |
Smart Display |

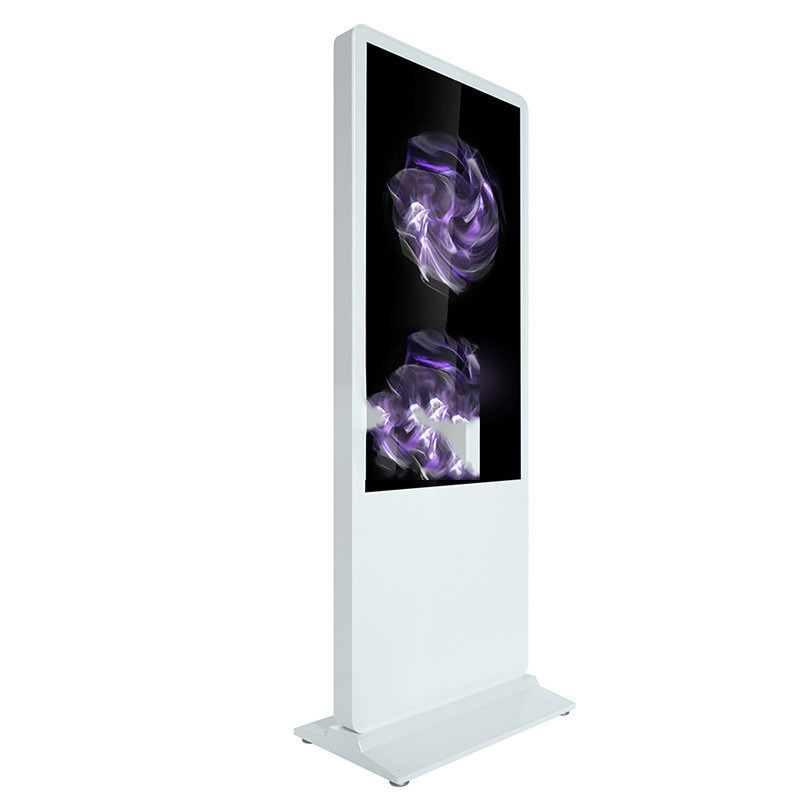

42inch interactive touch screen large touch screen kiosk white infrared touch screen kiosk
43 inch indoor LCD touch kiosk specification:
| Panel type | 43 inch LCD screen |
| DIsplay Area | 941.18*529.41mm |
| Show ratio | 16:9 |
| Backlight | LED backlight |
| Resolution | 1920*1080 |
| Color | 16.7M (8bit) |
| Brightness | 450 cd/m² optional |
| Contrast ratio | 3000:1 |
| Viewing Angle | 178°(H) / 178°(V) |
| Response time | 6ms |
| Life Expectancy | 60000 hours |
| Touch Max Resolution | 4096×4096 |
| Transparency | > 90%, Up to 100% |
| Scanning Speed | >50Scans/S |
| Response Speed | <12ms |
| Touch Type | Horizontal Multi Dot Touch Screen (Vertical way is optional) |
| Touch precision | 0.625mm |
| Minimum Touch object | ≥5mm |
| Touch Intensity | Over 60,000,000 Single Point Touch |
| Operation System | DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX |
| perating Voltage | DC 5V ±5% |
| Power Supply | Keyboard Serial Interface |
| Power | <1W (Current<200mA) |
| Communication | RS-232 Interface Port, USB Port |
| Vandal-Proof | Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break |
| Temperature Operating | -41°C ~70°C Temperature Storage: -50°C ~85°C |
| Altitude | 3000m |
| Noise | None |
| Life Time | >10 Year |
Infrared touchscreen Panel Parameters:
